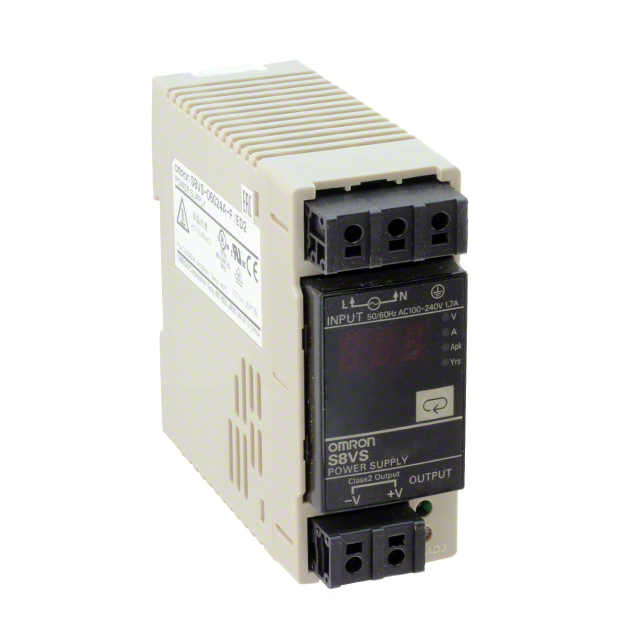

S8VS-06024A-F

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VS-06024A-F

AC Voltage - Input [Max]	240 VAC
AC Voltage - Input [Min]	100 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	2.5 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	108.3 mm
Size / Dimension [x]	4.26 "
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	3.74 in
Size / Dimension [z]	95 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Features	Approval Agency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div S8VS-06024B	ITE (Commercial)	100 VAC	240 VAC	AC	78 %	40 mm	3.74 in	108.3 mm	4.26 "	95 mm	1.57 "	2.5 A	1	3000 V	Adjustable Output Universal Input	CE cULus cURus VDE	24 V	-10 °C	60 °C
Omron Electronics Inc-EMC Div S8VS-06024A-F	ITE (Commercial)	100 VAC	240 VAC	AC	80 %	40 mm	3.74 in	108.3 mm	4.26 "	95 mm	1.57 "	2.5 A	1	3000 V	Adjustable Output Universal Input	CE cULus cURus VDE	24 V	-10 °C	60 °C
Omron Electronics Inc-EMC Div S8VS-06024A	ITE (Commercial)	100 VAC	240 VAC	AC	78 %	40 mm	3.74 in	108.3 mm	4.26 "	95 mm	1.57 "	2.5 A	1	3000 V	Adjustable Output Universal Input	CE cULus cURus VDE	24 V	-10 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 60W
