100023173

Active

Telegartner Inc

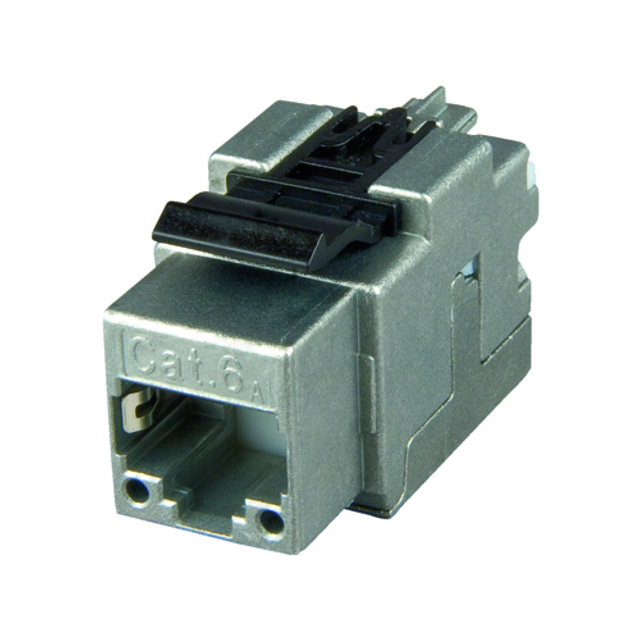

CU-CN AMJ-K MO C6A T568B

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN AMJ-K MO C6A T568B

Technical Specifications

Parameters and characteristics for this part

Specification	100023173

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	0.8 µm
Exterior Contact Finish Thickness	31 µin
Exterior Contact Material	Steel
Exterior Housing Color	Natural
Exterior Housing Material	Zinc
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Shielded
Interior Contact Finish	Tin
Interior Contact Finish Thickness	3 µm
Interior Contact Finish Thickness	118 µin
Interior Contact Material	Copper Alloy
Interior Housing Color	Natural
Interior Housing Material	Zinc
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat6a
Style	Modular

Part	Exterior Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Interior Type (Adapter End)	Interior Housing Material	Exterior Housing Material	Ratings	Exterior Contact Material	Interior Contact Material	Features	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Interior Contact Finish	Exterior Housing Color	Interior Contact Finish Thickness	Interior Contact Finish Thickness	Interior Housing Color	Exterior Type (Adapter End)
Telegartner Inc 100023173	Gold	-40 °C	70 °C	Modular	IDC Pressdown Punchdown Block	Zinc	Zinc	Cat6a	Steel	Copper Alloy	Shielded	0.8 µm	31 µin	Tin	Natural	3 µm	118 µin	Natural	Modular Jack 8p8c (RJ45 Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Natural
