SH06-5,00

Active

TE Connectivity Raychem Cable Protection

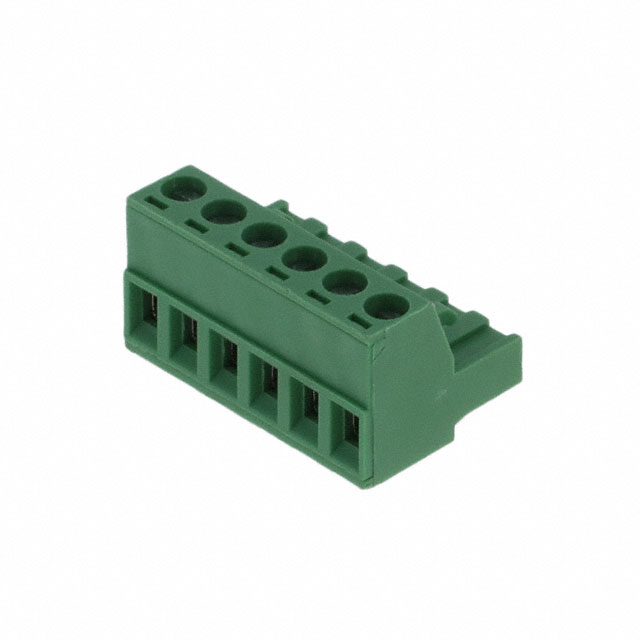

TERM BLOCK PLUG 6POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SH06-5,00

Active

TE Connectivity Raychem Cable Protection

TERM BLOCK PLUG 6POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH06-5,00

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Current - IEC	16 A
Current - UL	12 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.61 in
Insulation Height	15.49 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	450 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7.5 mm

SH06 Series

Part	Screw Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Torque - Screw	Torque - Screw	Number of Levels	Mounting Type	Current - UL	Positions Per Level	Voltage - IEC	Type	Termination Style	Material Flammability Rating	Contact Material	Voltage - UL	Contact Mating Finish	Color	Insulation Height	Insulation Height	Housing Material	Pitch [x]	Pitch [x]	Wire Strip Length	Wire Gauge or Range - mm²	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛
Altech Corporation SH06-10,00
Altech Corporation SH06-5,00/IA
Altech Corporation SH06-5,08-K
Altech Corporation SH06-3,81
Altech Corporation SH06-5,08	M3	14 AWG	30 AWG	16 A	4.4 Lb-In	0.5 Nm	1	Free Hanging (In-Line)	12 A	6	450 V	Plug Female Sockets	Screw - Rising Cage Clamp	UL94 V-0	Brass	300 V	Nickel	Green	0.61 in	15.49 mm	Polyamide (PA) Nylon	0.2 in	5.08 mm	7.5 mm	2.5 mm²	6
Altech Corporation SH06-10,16-K
Altech Corporation SH06-3,50-K
TE Connectivity Raychem Cable Protection SH06-3,50	M2	14 AWG	30 AWG	8 A	2.2 Lb-In	0.25 Nm	1	Free Hanging (In-Line)	11 A	6	160 V	Plug Female Sockets	Screw - Rising Cage Clamp	UL94 V-0	Copper Alloy	300 V	Nickel	Green			Polyamide (PA) Nylon	0.138 in	3.5 mm	8 mm		6	1.5 mm˛	0.25 mm˛	-30 ░C	105 ░C
Altech Corporation SH06-3,50	M2	14 AWG	30 AWG	8 A	2.2 Lb-In	0.25 Nm	1	Free Hanging (In-Line)	11 A	6	160 V	Plug Female Sockets	Screw - Rising Cage Clamp	UL94 V-0	Copper Alloy	300 V	Nickel	Green			Polyamide (PA) Nylon	0.138 in	3.5 mm	8 mm		6	1.5 mm˛	0.25 mm˛	-30 ░C	105 ░C
TE Connectivity Raychem Cable Protection SH06-5,00	M3	14 AWG	30 AWG	16 A	4.4 Lb-In	0.5 Nm	1	Free Hanging (In-Line)	12 A	6	450 V	Plug Female Sockets	Screw - Rising Cage Clamp	UL94 V-0	Brass	300 V	Nickel	Green	0.61 in	15.49 mm	Polyamide (PA) Nylon	0.197 in	5 mm	7.5 mm		6					2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.28
		50	$ 2.71
		100	$ 2.65
		1000	$ 1.96
		5000	$ 1.84

Description

General part information

SH06 Series

6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
