C0842A.41.10

Active

Prysmian Group

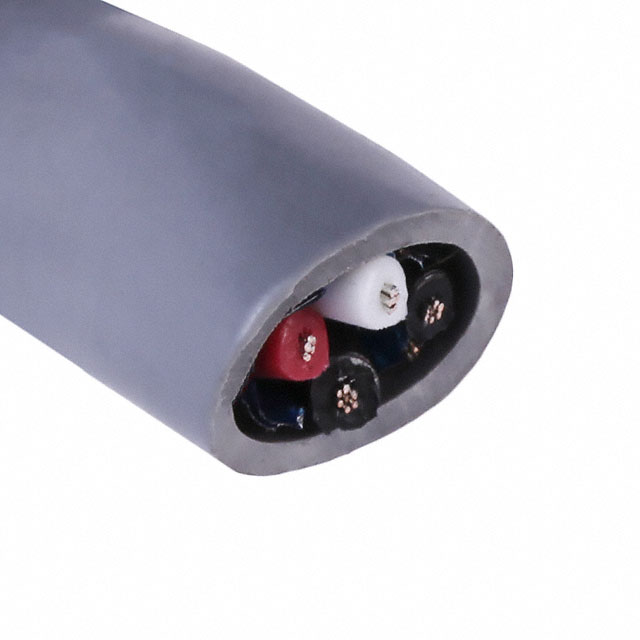

MULTI-PAIR 4COND 24AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 4COND 24AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C0842A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Low Capacitance
Jacket (Insulation) Diameter [diameter]	0.304 in
Jacket (Insulation) Diameter [diameter]	7.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	90 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Computer
Voltage	30 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length [x]	Conductor Material	Cable Type	Ratings	Length [x]	Number of Conductors	Voltage	Conductor Insulation	Wire Gauge	Shield Type	Shield Material	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket Color	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Length
Prysmian Group C0842A.41.10	32 AWG	7	15.24 m 304.8 m	50 ft 100 ft	Copper Annealed Tinned	Multi-Pair	ASTM B-33	30.5 m	4	30 V	Polyethylene (PE)	24 AWG	Braid Foil	Copper Flexfoil® Tinned	Poly-Vinyl Chloride (PVC)	Low Capacitance	0.304 in	7.72 mm	Computer	Gray	90 % 100 %	-20 C	80 C	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid 50.00' (15.24m)

Technical documentation and resources

No documents available
