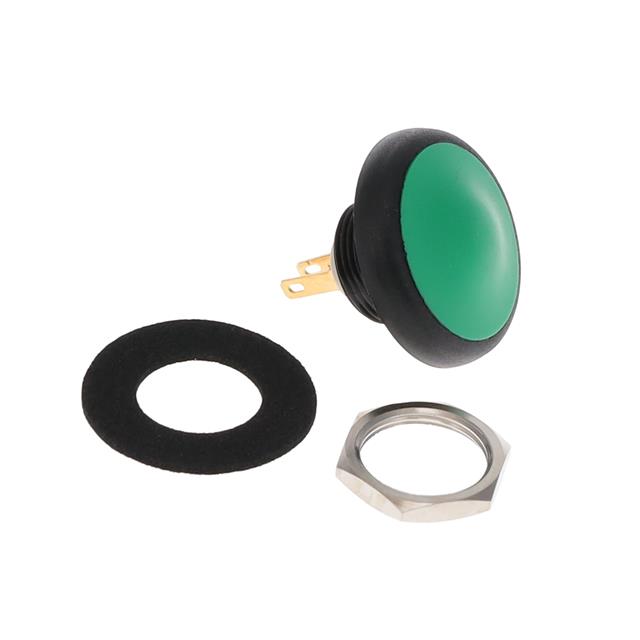

IFS3Z1AD300

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	IFS3Z1AD300

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA, 400 mA
Electrical Life	500000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - AC	32 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Switch Function	Voltage Rating - DC	Mounting Type	Actuator Marking	Type	Circuit	Ingress Protection	Mechanical Life	Current Rating (Amps)	Features	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Actuator Type
APEM IFS3Z1AD200	32 V	Quick Connect - 0.110" (2.8mm)	85 °C	-20 C	500000 Cycles	Off-Mom	50 VDC	Panel Mount Front	No Marking	Standard	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	100 mA 400 mA	Epoxy Sealed Terminals	Black	16 mm	Button Round
APEM IFS3Z1AD300	32 V	Quick Connect - 0.110" (2.8mm)	85 °C	-20 C	500000 Cycles	Off-Mom	50 VDC	Panel Mount Front	No Marking	Standard	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	100 mA 400 mA	Epoxy Sealed Terminals	Green	16 mm	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
