ST5045AX-D

Active

SMC Diode Solutions

TRENCH SCHOTTKY DIODE 45V 50A R-

Search across all available documentation for this part.

Active

SMC Diode Solutions

TRENCH SCHOTTKY DIODE 45V 50A R-

Technical Specifications

Parameters and characteristics for this part

Specification	ST5045AX-D

Capacitance @ Vr, F	5840 pF
Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-55 C

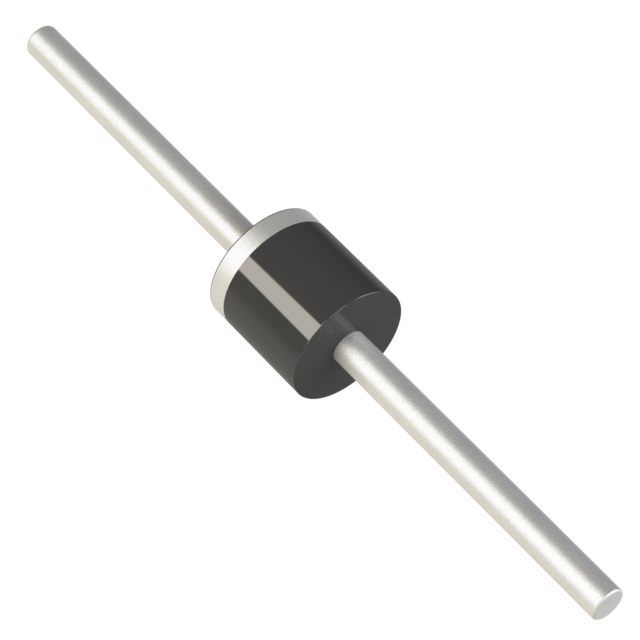

Package / Case	R-8, Axial
Speed	No Recovery Time
Supplier Device Package	R-8
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Technology	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
SMC Diode Solutions ST5045AX-D	200 µA	5840 pF	Schottky	No Recovery Time	550 mV	Through Hole	R-8 Axial	200 C	-55 C	R-8	45 V	50 A
SMC Diode Solutions ST5045AX-C	200 µA	5840 pF	Schottky	No Recovery Time	550 mV	Through Hole	R-8 Axial	200 C	-55 C	R-8	45 V	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 45 V 50A Through Hole R-8
