ATS-CPX030030035-146-C1-R0

Active

Advanced Thermal Solutions Inc.

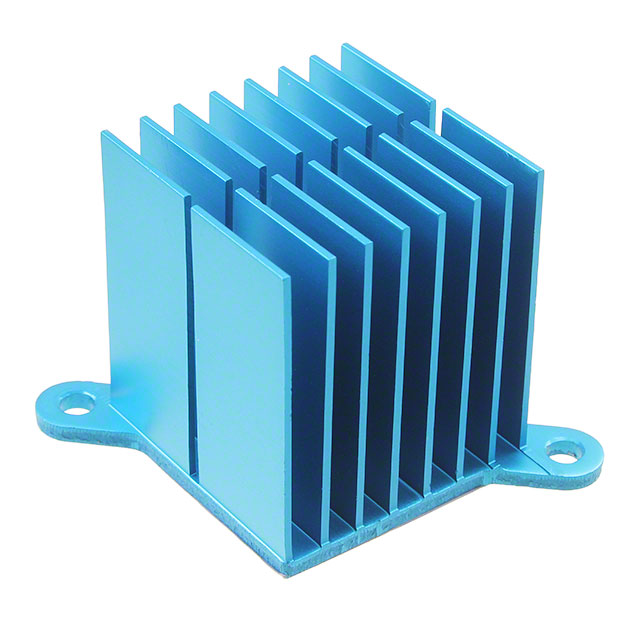

HEATSINK 30X30X35MM L-TAB CP

Deep-Dive with AI

Search across all available documentation for this part.

ATS-CPX030030035-146-C1-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 30X30X35MM L-TAB CP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-CPX030030035-146-C1-R0

Attachment Method	Push Pin
Fin Height	1.378 in
Fin Height	35 mm
Length [x]	30 mm
Length [x]	1.181 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	3.98 °C/W, 100 LFM
Type	Top Mount
Width	30 mm
Width	1.181 in

ATS-CPX Series

...

Part	Attachment Method	Package Cooled	Fin Height [z]	Fin Height [z]	Type	Width [x]	Width [x]	Material	Shape	Thermal Resistance @ Forced Air Flow	Material Finish	Fin Height	Fin Height	Width	Width	Length [x]	Length [x]	Length	Length
Advanced Thermal Solutions Inc. ATS-CPX040040010-194-C1-R0	Push Pin	ASIC BGA CPU LGA	0.394 in	10 mm	Top Mount	1.575 in	40 mm	Aluminum	Fins Square	13.02 °C/W 100 LFM	Blue Anodized
Advanced Thermal Solutions Inc. ATS-CPX030030015-142-C3-R0	Push Pin	ASIC BGA CPU LGA			Top Mount			Aluminum	Fins Square	10.26 °C/W 100 LFM	Blue Anodized	0.59 "	15 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-CPX054054012-204-C2-R0	Push Pin	ASIC BGA CPU LGA	0.472 in	12 mm	Top Mount	2.126 "	54 mm	Aluminum	Fins Square	7.43 °C/W	Blue Anodized					54 mm	2.126 "
Advanced Thermal Solutions Inc. ATS-CPX030030035-146-C1-R0	Push Pin	ASIC BGA CPU LGA			Top Mount			Aluminum	Fins Square	3.98 °C/W 100 LFM	Blue Anodized	1.378 in	35 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-CPX045045035-192-C3-R0	Push Pin	ASIC BGA CPU LGA			Top Mount	1.772 in		Aluminum	Fins Square	2.43 °C/W 100 LFM	Blue Anodized	1.378 in	35 mm	45 mm			1.772 "	45 mm
Advanced Thermal Solutions Inc. ATS-CPX040040020-183-C3-R0	Push Pin	ASIC BGA CPU LGA	0.79 in	20 mm	Top Mount	1.575 in	40 mm	Aluminum	Fins Square	5.47 °C/W 100 LFM	Blue Anodized
Advanced Thermal Solutions Inc. ATS-CPX040040025-116-C2-R0	Push Pin	ASIC BGA CPU LGA			Top Mount	1.575 in	40 mm	Aluminum	Fins Square		Blue Anodized	0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-CPX054054010-125-C1-R0	Push Pin	ASIC BGA CPU LGA	0.394 in	10 mm	Top Mount	2.126 "	54 mm	Aluminum	Fins Square	8.9 °C/W 100 LFM	Blue Anodized					54 mm	2.126 "
Advanced Thermal Solutions Inc. ATS-CPX025025010-137-C1-R0	Push Pin	ASIC BGA CPU LGA	0.394 in	10 mm	Top Mount	0.984 in		Aluminum	Fins Square		Blue Anodized			25 mm				25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-CPX040040010-113-C2-R0	Push Pin	ASIC BGA CPU LGA	0.394 in	10 mm	Top Mount	1.575 in	40 mm	Aluminum	Fins Square	11.79 °C/W 100 LFM	Blue Anodized

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.93
		10	$ 3.83
		25	$ 3.73
		50	$ 3.52
		100	$ 3.31
		250	$ 3.11
		450	$ 3.00
		950	$ 2.69

Description

General part information

ATS-CPX Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
