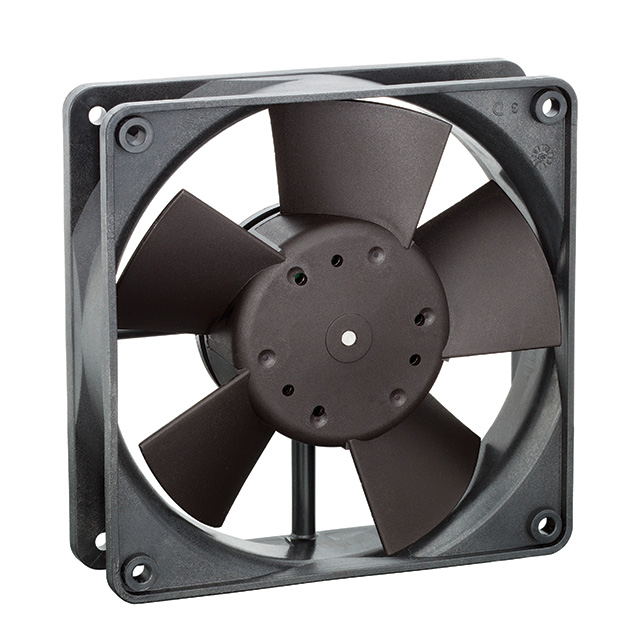

4374S
Activeebm-papst Inc.
DC FANS DC TUBEAXIAL FAN, 24VDC, 45DBA, BALL BEARING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4374S
Activeebm-papst Inc.
DC FANS DC TUBEAXIAL FAN, 24VDC, 45DBA, BALL BEARING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4374S |
|---|---|
| Air Flow | 100 CFM |
| Air Flow | 2.8 m³/min |
| Approval Agency | UL, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.205 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polyamide (PA), Nylon |
| Noise | 45 dB(A) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 4.9 W |
| RPM | 2800 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 3 Terminals |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 219.99 g |
| Weight | 0.485 lb |
| Width [y] | 32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4300 Series
DC Fans DC Tubeaxial Fan, 24VDC, 45dBA, Ball Bearing
