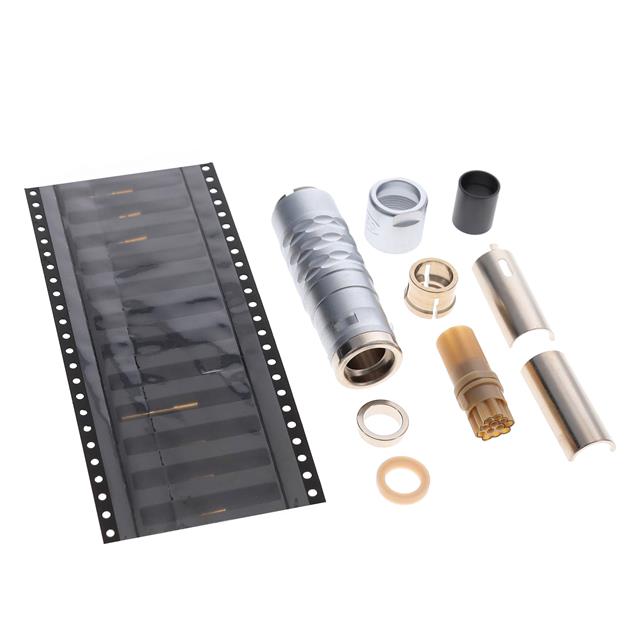

SA2KAC-P12PFG2-7500
ActiveODU
STRAIGHT PLUG, STY SA, SER K, SZ
Deep-Dive with AI
Search across all available documentation for this part.
SA2KAC-P12PFG2-7500
ActiveODU
STRAIGHT PLUG, STY SA, SER K, SZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SA2KAC-P12PFG2-7500 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Cable Opening [custom] | 0.295 in, 0.276 in |
| Cable Opening [custom] | 7 mm |
| Cable Opening [custom] | 7.5 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Medical (IEC 60601 (2 MOOP/2 MOPP)) |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 2 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 98.61 | |
Description
General part information
SA2KAC Series
12 Position Circular Connector Plug, Male Pins Crimp
