AOZ8311DI-26

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 26VWM 46VC 2DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 26VWM 46VC 2DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8311DI-26

Applications	General Purpose
Capacitance @ Frequency	90 pF
Current - Peak Pulse (10/1000µs)	9 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

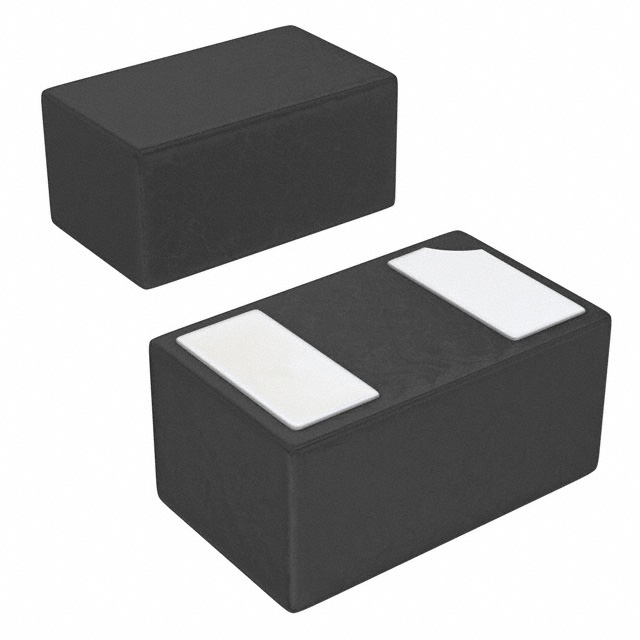

Package / Case	2-UDFN
Power - Peak Pulse	410 W
Power Line Protection	False
Supplier Device Package	2-DFN (1.6x0.8)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	28.6 V
Voltage - Clamping (Max) @ Ipp [Max]	46 V
Voltage - Reverse Standoff (Typ)	26 V

Part	Capacitance @ Frequency	Power Line Protection	Power - Peak Pulse	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Type	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Package / Case	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Peak Pulse (10/1000µs)
Alpha & Omega Semiconductor Inc. AOZ8311DI-26	90 pF		410 W	General Purpose	46 V	2-DFN (1.6x0.8)	Zener	1	26 V	2-UDFN	28.6 V	-40 °C	125 ¯C	Surface Mount	9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

46V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1.6x0.8)
