48330SC

Active

Murata Power Solutions Inc.

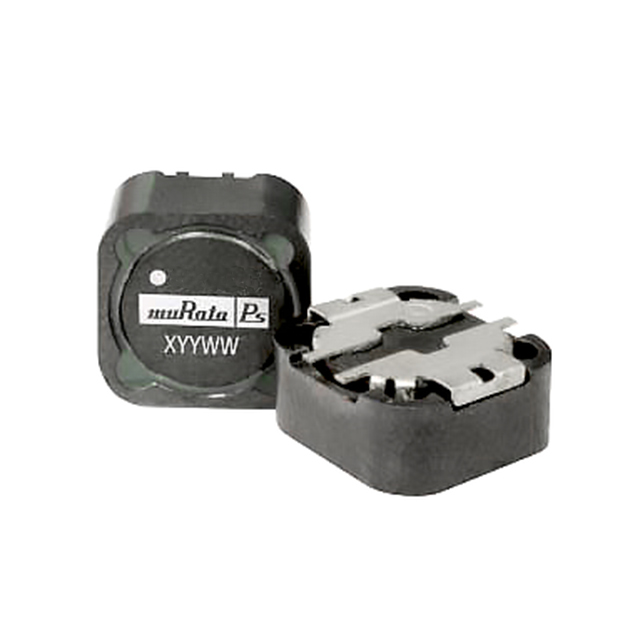

FIXED IND 33UH 2.8A 73 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Magnetics Selection Guide

48330SC

Active

Murata Power Solutions Inc.

FIXED IND 33UH 2.8A 73 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet Power Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	48330SC

Current Rating (Amps)	2.8 A
Frequency - Self Resonant	11 MHz
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Inductance	33 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	Nonstandard
Q @ Freq	1 MHz, 31
Shielding	Shielded
Size / Dimension [x]	0.48 in
Size / Dimension [x]	12.2 mm
Size / Dimension [y]	12.2 mm
Size / Dimension [y]	0.48 in
Tolerance	20 %
Type	Wirewound

48 Series

Part	Mounting Type	Current Rating (Amps)	Inductance	Shielding	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Q @ Freq	DC Resistance (DCR)
Murata Power Solutions Inc. 48150C	Surface Mount	3.2 A	15 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard	6.2 mm	0.244 in	85 °C	-40 °C	77.4 mOhm	Wirewound
Murata Power Solutions Inc. 48681SC	Surface Mount	660 mA	680 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C	1.25 Ohm	Wirewound	20 %	0.236 in	6 mm	4 MHz	18 800 kHz
Murata Power Solutions Inc. 486R8SC	Surface Mount	5.1 A	6.8 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C	21 mOhm	Wirewound	30 %	0.236 in	6 mm	26 MHz	1 MHz 34
Murata Power Solutions Inc. 48102SC	Surface Mount	0.52 A	1 mH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C		Wirewound	20 %	0.236 in	6 mm	4 MHz	17 800 kHz	1.85 Ohm
Murata Power Solutions Inc. 48471SC	Surface Mount	760 mA		Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C		Wirewound	20 %	0.236 in	6 mm	4 MHz	20 800 kHz
Murata Power Solutions Inc. 48220C	Surface Mount	2.6 A	22 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard	6.2 mm	0.244 in	85 °C	-40 °C		Wirewound						119 mOhm
Murata Power Solutions Inc. 48330C	Surface Mount	2.1 A	33 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard	6.2 mm	0.244 in	85 °C	-40 °C		Wirewound						184 mOhm
Murata Power Solutions Inc. 48221SC	Surface Mount	1 A	220 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C	430 mOhm	Wirewound	20 %	0.236 in	6 mm	5 MHz	23 800 kHz
Murata Power Solutions Inc. 48330SC	Surface Mount	2.8 A	33 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard			85 °C	-40 °C		Wirewound	20 %	0.236 in	6 mm	11 MHz	1 MHz 31
Murata Power Solutions Inc. 482R2C	Surface Mount	8.3 A	2.2 µH	Shielded	10 kHz	0.48 in	12.2 mm	12.2 mm	0.48 in	4 Lead	Nonstandard	6.2 mm	0.244 in	85 °C	-40 °C	13.5 mOhm	Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.49
	Digi-Reel®	1	$ 0.49
	Tape & Reel (TR)	600	$ 0.52
		1200	$ 0.49
Newark	Each	500	$ 0.59
		1000	$ 0.57

Description

General part information

48 Series

33 µH Shielded Wirewound Inductor 2.8 A 73mOhm Max Nonstandard, 4 Lead
