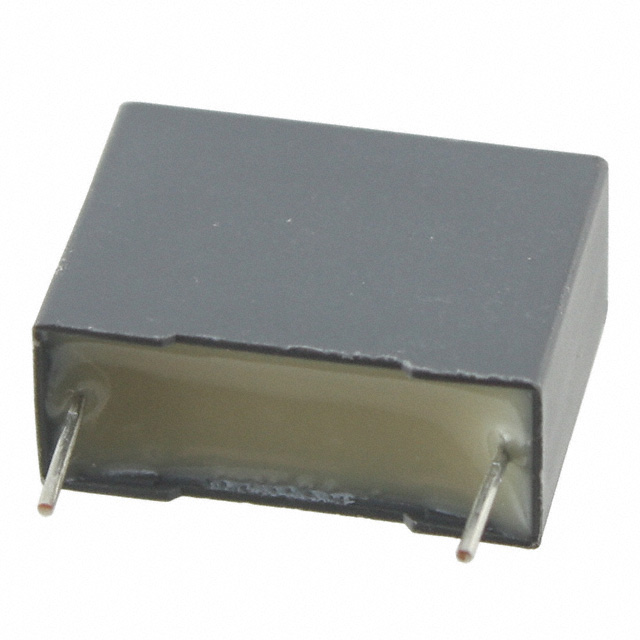

RSBDC3180SH10J
ActiveKEMET
CAP FILM 0.18UF 5% 63VDC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSBDC3180SH10J
ActiveKEMET
CAP FILM 0.18UF 5% 63VDC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSBDC3180SH10J |
|---|---|
| Applications | Automotive |
| Capacitance | 0.18 µF |
| Dielectric Material | Polyester, Metallized |
| Features | High Temperature |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 40 V |
| Voltage Rating - DC | 63 VDC |
RSBDC Series
| Part | Lead Spacing | Lead Spacing | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Termination | Capacitance | Features | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Dielectric Material | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 5 mm | 0.197 in | 0.283 in 7.2 mm | 0.138 in 3.5 mm | Radial | PC Pins | 0.47 µF | High Temperature | General Purpose | 0.299 in | 7.6 mm | 63 VDC | Through Hole | 40 V | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | 5 % | -55 °C | 125 °C | ||||
KEMET | Radial | PC Pins | 0.08 µF | High Temperature | Automotive | 63 VDC | Through Hole | 40 V | Polyester Metallized | 5 % | -55 °C | 125 °C | AEC-Q200 | |||||||||
KEMET | 5 mm | 0.197 in | 7.2 mm | 5 mm | Radial | PC Pins | 1 µF | High Temperature | Automotive | 63 VDC | Through Hole | 40 V | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | 10 % | -55 °C | 125 °C | AEC-Q200 | 0.197 " | 0.283 in | |||
KEMET | 5 mm | 0.197 in | 7.2 mm | Radial | PC Pins | 100000 pF | High Temperature | General Purpose | 0.26 in | 6.6 mm | 63 VDC | Through Hole | 40 V | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | 5 % | -55 °C | 125 °C | 0.098 in | 0.283 in | 2.5 mm | ||
KEMET | 5 mm | 0.197 in | 0.283 in 7.2 mm | 0.138 in 3.5 mm | Radial | PC Pins | 0.33 µF | High Temperature | Automotive | 0.299 in | 7.6 mm | 63 VDC | Through Hole | 40 V | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | 10 % | -55 °C | 125 °C | AEC-Q200 | |||
KEMET | Radial | PC Pins | 0.18 µF | High Temperature | Automotive | 63 VDC | Through Hole | 40 V | Polyester Metallized | 5 % | -55 °C | 125 °C | AEC-Q200 | |||||||||
KEMET | 5 mm | 0.197 in | 0.283 in 7.2 mm | 0.138 in 3.5 mm | Radial | PC Pins | 0.47 µF | High Temperature | Automotive | 0.299 in | 7.6 mm | 63 VDC | Through Hole | 40 V | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | 10 % | -55 °C | 125 °C | AEC-Q200 | |||
KEMET | 5 mm | 0.197 in | 0.283 in 7.2 mm | 0.138 in 3.5 mm | Radial | PC Pins | 0.47 µF | High Temperature | Automotive | 0.299 in | 7.6 mm | 63 VDC | Through Hole | 40 V | Polyester Metallized | 5 % | -55 °C | 125 °C | AEC-Q200 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RSBDC Series
0.18 µF Film Capacitor 40V 63V Polyester, Metallized Radial
