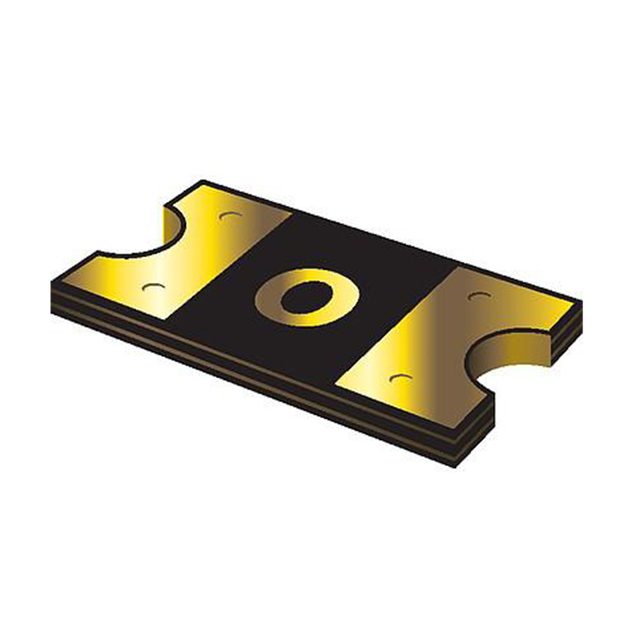

PFNF.035.2

Active

SCHURTER Inc.

PTC RESET FUSE 6V 350MA 1206

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 6V 350MA 1206

Technical Specifications

Parameters and characteristics for this part

Specification	PFNF.035.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	350 mA
Current - Max [Max]	100 A
Current - Trip (It)	750 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3216 Metric
Package / Case	1206
Package / Case	Concave
Resistance - Initial (Ri) (Min) [Min]	300 mOhms
Resistance - Post Trip (R1) (Max) [Max]	1.2 Ohms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Thickness (Max) [Max]	0.033 in
Thickness (Max) [Max]	0.85 mm
Time to Trip	100 ms
Type	Polymeric
Voltage - Max [Max]	6 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Approval Agency	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Max [Max]	Type	Current - Hold (Ih) (Max) [Max]	Time to Trip	Current - Trip (It)
SCHURTER Inc. PFNF.035.2	85 °C	-40 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	3216 Metric	1206	Concave	6 V	300 mOhms	1.2 Ohms	Surface Mount	cURus TUV	0.033 in	0.85 mm	100 A	Polymeric	350 mA	100 ms	750 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 6V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
