98701.6

Active

Conta-Clip, Inc.

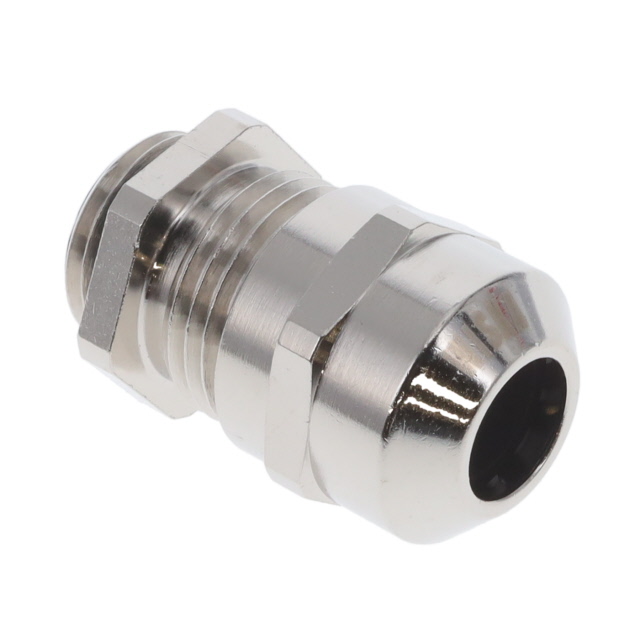

CABLE GLND 4.57-9.91MM M16 BRASS

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLND 4.57-9.91MM M16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	98701.6

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Outside Cable Diameter (Max) [Max] [diameter]	9.91 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.39 in
Outside Cable Diameter (Min) [Min] [diameter]	0.18 in
Outside Cable Diameter (Min) [Min] [diameter]	4.57 mm
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.2 in
Thread Length	5.08 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Material	Panel Hole Size	Panel Hole Size	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Conta-Clip, Inc. 98701.6	Brass Nickel Plated	0.63 in	16 mm	M16x1.5	9.91 mm	0.39 in	Silver	Cable Gland	IP68 - Dust Tight Waterproof	0.2 in	5.08 mm	0.18 in	4.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 12.67

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
