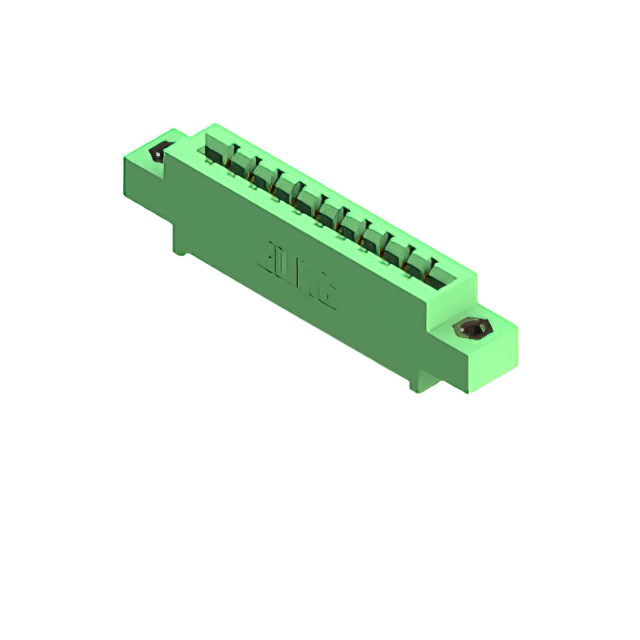

337-010-544-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 10POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-010-544-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 10POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-010-544-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
337-010 Series
...
| Part | Card Type | Number of Positions | Flange Feature | Number of Positions/Bay/Row [custom] | Mounting Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Pitch [x] | Pitch [x] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Color | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 10 | 4-40 Threaded Insert Top Mount Opening | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Wire Wrap | Green | Gold | |||||
EDAC Inc. | Non Specified - Single Edge | 10 | Flush Mount Top Opening Unthreaded | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder Eyelet(s) | Green | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | Non Specified - Single Edge | 10 | Floating Bobbin Top Mount Opening | 10 | Through Hole Right Angle | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Wire Wrap | Green | Gold | 2.95 mm | 0.116 in | |||
EDAC Inc. | Non Specified - Single Edge | 10 | Flush Mount M3 Threaded Insert Top Opening | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | |||||
EDAC Inc. | Non Specified - Single Edge | 10 | Side Mount Opening Unthreaded | 10 | Through Hole Right Angle | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Wire Wrap | Green | Gold | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Single Edge | 10 | Flush Mount Side Opening Unthreaded | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | Non Specified - Single Edge | 10 | Floating Bobbin Top Mount Opening | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | 2.95 mm | 0.116 in | |||
EDAC Inc. | Non Specified - Single Edge | 10 | Flush Mount Top Opening Unthreaded | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | 3.25 mm | 0.128 " | |||
EDAC Inc. | Non Specified - Single Edge | 10 | 4-40 Threaded Insert Top Mount Opening | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 10 | Side Mount Opening Unthreaded | 10 | Through Hole | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | -40 °C | 105 ░C | 1 | Solder | Green | Gold | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 7.58 | |
Description
General part information
337-010 Series
10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
