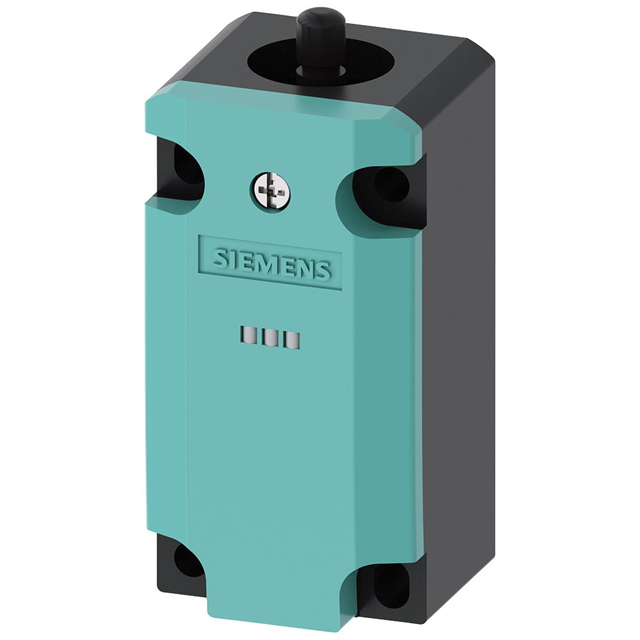

3SE51121KA00
ActiveSiemens
SWITCH LIMIT 3PST 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
3SE51121KA00
ActiveSiemens
SWITCH LIMIT 3PST 3A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SE51121KA00 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | 3PST-2NC/1NO |
| Current Rating (Amps) | 3 A |
| Electrical Life | 10000000 Cycles |
| Ingress Protection | IP66/IP67 |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2039 gf |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - DC | 24 V |
3SE5112 Series
| Part | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Circuit | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Termination Style | Ingress Protection | Electrical Life | Mechanical Life | Overtravel | Overtravel | Actuator Type | Voltage Rating - DC | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | DPST-NO/NC | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | 3 mm | 0.118 in | Roller Plunger | 24 V | |
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | 3 mm | 0.118 in | Roller Plunger | 24 V | |
Siemens | Off-Mom On-Mom | -25 °C | 60 °C | 2039 gf | 3PST-2NC/1NO | 3 A | Chassis Mount | Screw Terminal | IP66/IP67 | 10000000 Cycles | 15000000 Cycles | Round (Pin Plunger) | 24 V | ||||
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | 3 mm | 0.118 in | Round (Pin Plunger) | 24 V | |
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | Round (Pin Plunger) | 24 V | |||
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | Round (Pin Plunger) | 24 V | |||
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 1020 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | Top Rotary Roller | 24 V | |||
Siemens | Cover | ||||||||||||||||
Siemens | Off-Mom On-Mom | -25 °C | 85 °C | 2039 gf | DPST-NO/NC | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | Round (Pin Plunger) | 24 V | |||
Siemens | Off-Mom On-Mom | -40 °C | 85 °C | 2039 gf | 3PST-2NC/1NO | 125 V | 3 A 6 A | Chassis Mount | Screw Terminal | IP66/IP67 | 100000 Cycles | 15000000 Cycles | Round (Pin Plunger) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 189.35 | |
Description
General part information
3SE5112 Series
Switch 3PST-2NC/1NO Chassis Mount
