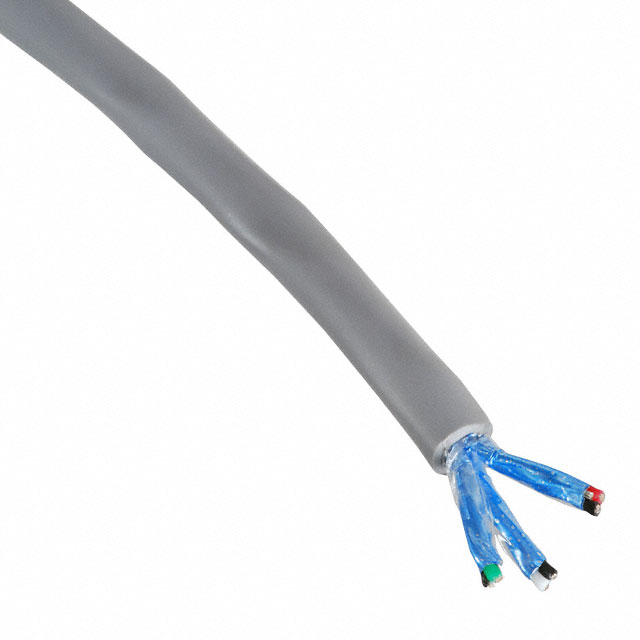

C6047A.46.10

Active

Prysmian Group

MULTI-PAIR 6COND 18AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 6COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C6047A.46.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	10.03 mm
Jacket (Insulation) Diameter [diameter]	0.395 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Number of Conductors	Conductor Material	Conductor Insulation	Jacket (Insulation) Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket Color	Voltage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length [x]	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Length [x]	Shield Type
Prysmian Group C6047A.41.10	Drain Wire Rip Cord	6	Copper Tinned	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	Flexfoil®	-20 C	80 C	100 %	Gray	300 V	18 AWG	16	30 AWG	Multi-Pair	15.24 m 304.8 m	50 ft 500 '	1000 ft	10.03 mm	0.395 "	Computer	152.4 m	Foil
Prysmian Group C6047A.38.10	Drain Wire Rip Cord	6	Copper Tinned	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	Flexfoil®	-20 C	80 C	100 %	Gray	300 V	18 AWG	16	30 AWG	Multi-Pair		500 '		10.03 mm	0.395 "	Computer	152.4 m	Foil
Prysmian Group C6047A.46.10	Drain Wire Rip Cord	6	Copper Tinned	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	Flexfoil®	-20 C	80 C	100 %	Gray	300 V	18 AWG	16	30 AWG	Multi-Pair				10.03 mm	0.395 "	Computer		Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	125000	$ 1.24

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil 5000' (1524.0m)

Technical documentation and resources

No documents available
