PJ-028-SMT-TR

Active

CUI Devices

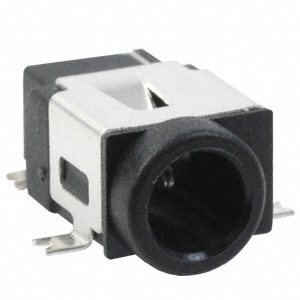

CONN PWR JACK 0.9X3.2MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 0.9X3.2MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-028-SMT-TR

Actual Diameter [diameter]	0.031 in, 0.132 in, 0.8 mm, 3.35 mm
Body Color	Black
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	4 A
Features	Board Guide
Gender	Male
Housing Material	Polyamide (PA9T), Nylon 9T
Industry Recognized Mating Diameter [diameter]	0.035 in, 0.126 in
Industry Recognized Mating Diameter [diameter]	3.2 mm, 0.9 mm
Internal Switch(s)	False
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.303 "
Mating Length/Depth	7.7 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Material Flammability Rating	Connector Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Termination	Body Color	Housing Material	Contact Material - Plating [custom]	Features	Number of Positions/Contacts	Current Rating (Amps)	Mating Length/Depth	Mating Length/Depth	Contact Material	Mounting Type	Actual Diameter [diameter]	Gender	Shielding	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Internal Switch(s)	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Actual Diameter [diameter]	Actual Diameter	Contact Material - Plating
CUI Devices PJ-028-SMT-TR	UL94 V-0	Jack	0.035 in 0.126 in	0.9 mm 3.2 mm	24 VDC	Solder	Black	Polyamide (PA9T) Nylon 9T	Gold	Board Guide	2 Conductors 3 Conductors	4 A	0.303 "	7.7 mm	Brass Phosphor Bronze	Surface Mount Right Angle	0.031 in 0.132 in 0.8 mm 3.35 mm	Male	Shielded		-25 °C	85 °C
CUI Devices PJ-028A	UL94 V-0	Jack	0.083 in 0.217 "	2.1 mm 5.5 mm	24 VDC	Kinked Pin	Black	Polybutylene Terephthalate (PBT)			2 Conductors 3 Conductors	2.5 A			Brass Copper Alloy	Through Hole		Male	Unshielded		-25 °C	85 °C	Normally Closed Single Switch	9 mm	0.354 in	0.079 in 0.256 in	2 mm 6.5 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 0.90mm ID (0.035"), 3.20mm OD (0.126") Surface Mount, Right Angle

Technical documentation and resources
