0397060003

Active

Molex

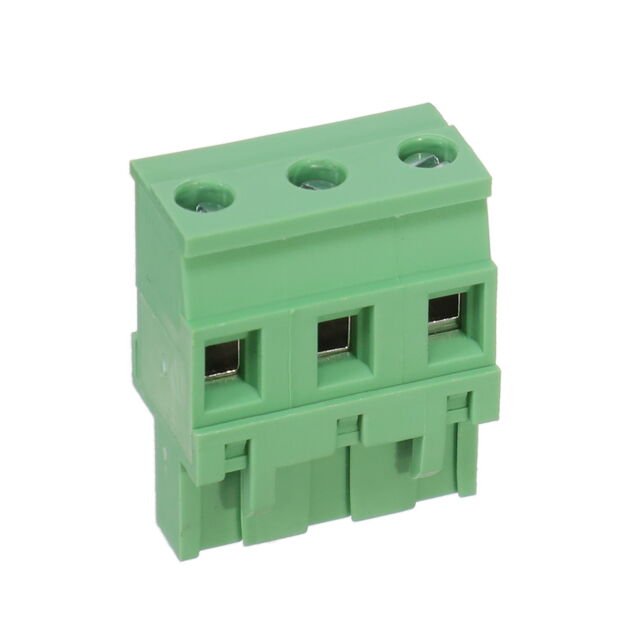

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0397060003

Active

Molex

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0397060003

Color	Green
Contact Material	Bronze
Contact Mating Finish	Tin
Current - UL	10 A
Features	Retention Latches (Wire Side)
Insulation Height	1.02 in
Insulation Height	25.91 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Plug Wire Entry	90 °
Positions Per Level	3
Screw Size	M3
Termination Style	Screw
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	7 mm

039706 Series

Part	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Voltage - UL	Contact Material	Positions Per Level	Wire Strip Length	Mounting Type	Screw Size	Number of Positions	Plug Wire Entry	Number of Levels	Torque - Screw	Torque - Screw	Insulation Height	Insulation Height	Material Flammability Rating	Features	Color	Type	Current - UL	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0397060010	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	10	7 mm	Free Hanging (In-Line)	M3	10	90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397065003
Molex 0397060007	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	7	7 mm	Free Hanging (In-Line)	M3	7	90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397060002	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	2	7 mm	Free Hanging (In-Line)	M3	2	90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397060003	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	3	7 mm	Free Hanging (In-Line)	M3		90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397060005	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	5	7 mm	Free Hanging (In-Line)	M3		90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397060012	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	12	7 mm	Free Hanging (In-Line)	M3	12	90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C
Molex 0397060008	0.3 in	7.62 mm	30 AWG	12 AWG	Tin	300 V	Bronze	8	7 mm	Free Hanging (In-Line)	M3	8	90 °	1	0.56 Nm	5 Lb-In	1.02 in	25.91 mm	UL94 V-0	Retention Latches (Wire Side)	Green	Plug Female Sockets	10 A	Screw	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.30
		10	$ 1.39
		25	$ 1.21
		50	$ 1.11
		100	$ 1.04
		250	$ 0.97
		500	$ 0.93
		1000	$ 0.90
		5000	$ 0.86

Description

General part information

039706 Series

3 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 90° Free Hanging (In-Line)
