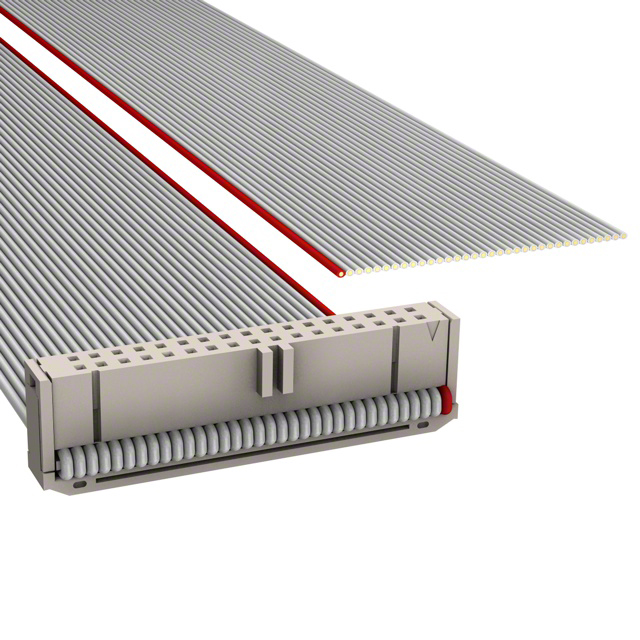

M1UXK-3436J

Active

3M (TC)

IDC CABLE - MKS34K/MC34G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

M1UXK-3436J

Active

3M (TC)

IDC CABLE - MKS34K/MC34G/X

Deep-Dive with AI

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1UXK-3436J

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1UXK Series

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch - Cable	Pitch - Cable	Contact Finish	Cable Termination	Features	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Connector Type	Number of Positions	Color
3M (TC) M1UXK-3436J	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	34
3M (TC) M1UXK-3036J	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	30
3M (TC) M1UXK-3440K	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3.34 ft	1.02 m	Socket to Cable	34	Multiple Twisted Pair (Flat)
3M (TC) M1UXK-1436R	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	14	Multiple Ribbon
3M (TC) M1UXK-5036R	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	50	Multiple Ribbon
3M (TC) M1UXK-4036J	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	40
3M (TC) M1UXK-2436J	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	24
3M (TC) M1UXK-4036R	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	40	Multiple Ribbon
3M (TC) M1UXK-6036R	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	60	Multiple Ribbon
3M (TC) M1UXK-2036J	Unshielded	0.76 Ám	30 Áin	2	0.05 "	1.27 mm	Gold	IDC	Polarizing Key Strain Relief	0.1 in	2.54 mm	3 ft	914.4 mm	Socket to Cable	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.25
		10	$ 13.27
		25	$ 12.00
		50	$ 11.15
		100	$ 10.37
		250	$ 9.45
		500	$ 8.84
		1000	$ 8.28

Description

General part information

M1UXK Series

34 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
