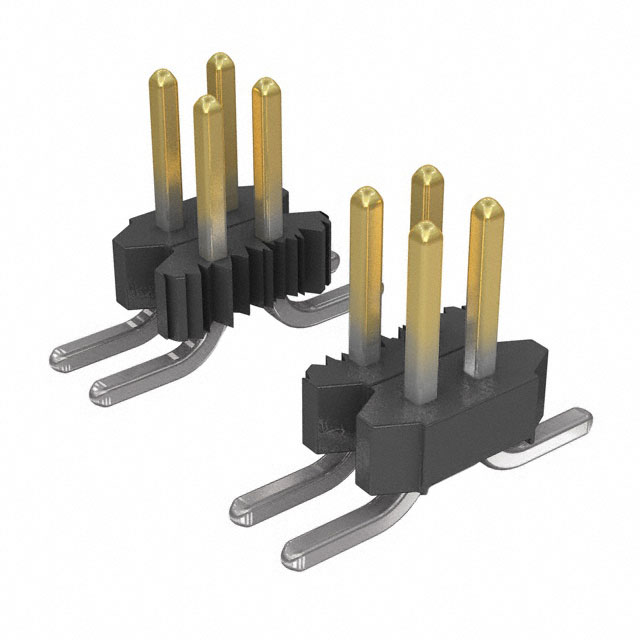

0015910800

Active

Molex

CONN HEADER SMD 80POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0015910800

Active

Molex

CONN HEADER SMD 80POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015910800

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	74.8 Áin
Contact Finish Thickness - Post	1.9 Ám
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Height	2.29 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

001591 Series

2.54mm Pitch C-Grid Breakaway Header, Surface Mount, Dual Row, Vertical, 26 Circuits, 1.50µm Minimum Bright Tin (Sn) Over Nickel (Ni) Plating, with 3.30mm PCB Locator Pegs

...

Part	Number of Rows	Mounting Type	Applications	Termination	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Shrouding	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Connector Type	Features	Number of Positions Loaded	Style	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Contact Length - Mating	Number of Positions
Molex 0015911182	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm	Gold	Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	74.8 Áin	1.9 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	15 µin	0.38 µm	18	6.1 mm	0.24 in	Push-Pull
Molex 0015911424	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm		Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	150 Áin	3.81 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	150 Áin	3.81 Ám	42	8.13 mm		Push-Pull	0.32 in
Molex 0015915049	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm	Gold	Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	74.8 Áin	1.9 Ám	Male Pin	Breakaway Header		All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	30 Áin	0.76 Ám	4	8.13 mm		Push-Pull	0.32 in
Molex 0015911164	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm		Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	150 Áin	3.81 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	150 Áin	3.81 Ám		8.13 mm		Push-Pull	0.32 in	16
Molex 0015910060	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm	Gold	Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	74.8 Áin	1.9 Ám	Male Pin	Breakaway Header		All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	15 µin	0.38 µm	6	6.1 mm	0.24 in	Push-Pull
Molex 0015910468	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm	Gold	Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	74.8 Áin	1.9 Ám	Male Pin	Breakaway Header		All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	15 µin	0.38 µm	46	8.13 mm		Push-Pull	0.32 in
Molex 0015911221	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm		Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	150 Áin	3.81 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	150 Áin	3.81 Ám	22 positions	6.1 mm	0.24 in	Push-Pull
Molex 0015911201	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm		Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	150 Áin	3.81 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	150 Áin	3.81 Ám	20	6.1 mm	0.24 in	Push-Pull
Molex 0015911484	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm		Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	150 Áin	3.81 Ám	Male Pin	Breakaway Header	Board Guide	All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	150 Áin	3.81 Ám	48	8.13 mm		Push-Pull	0.32 in
Molex 0015910800	2	Surface Mount	Automotive General Purpose Lighting Medical Telecommunications	Solder	Copper Alloy	0.1 in	2.54 mm	Gold	Tin	Unshrouded	Black	2.54 mm	0.1 in	Square	74.8 Áin	1.9 Ám	Male Pin	Breakaway Header		All	Board to Board Cable	0.09 in	2.29 mm	UL94 V-0	15 µin	0.38 µm	80	6.1 mm	0.24 in	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.06
		10	$ 4.43
		100	$ 3.71

Description

General part information

001591 Series

2.54mm Pitch C-Grid Breakaway Header, Surface Mount, Dual Row, Vertical, 26 Circuits, 1.50µm Minimum Bright Tin (Sn) Over Nickel (Ni) Plating, with 3.30mm PCB Locator Pegs
