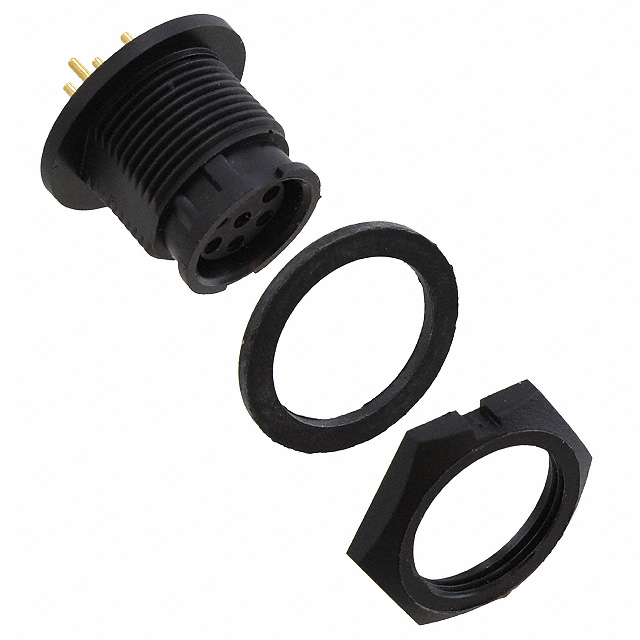

7291-6SG-300 - 72x1-6SG-300

7291-6SG-300

Active
Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
7291-6SG-300 - 72x1-6SG-300

7291-6SG-300

Active
Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification7291-6SG-300
ApplicationsAutomotive, Communication Systems, Instrumentation
Backshell Material, PlatingPolyamide (PA), Nylon
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialBrass
Current Rating (Amps)Varies by Wire Gauge
Fastening TypeBayonet Lock
Ingress ProtectionWeathertight
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions6
Operating Temperature [Max]115 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
ShieldingUnshielded
TerminationSolder
Voltage Rating600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.12
10$ 7.78
25$ 7.03
50$ 6.71

Description

General part information

7291-6SG Series

6 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Datasheet
