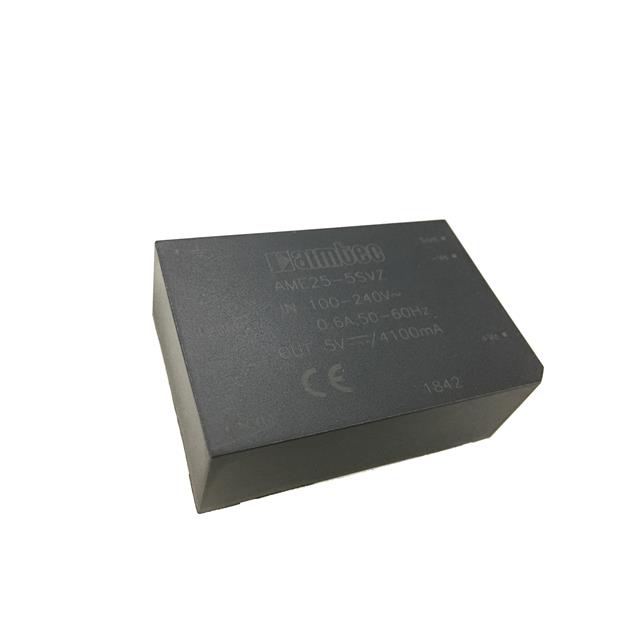

AME25-5SVZ-ST

Active

aimtec

AC/DC CONVERTER 5V 21W

Search across all available documentation for this part.

Active

aimtec

AC/DC CONVERTER 5V 21W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Type	Power (Watts)	Load Regulation	Line Regulation	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Weight	Weight	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Mounting Type	Package / Case	Features	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1
aimtec AME25-3.3SJZ	6-DIP Module	Enclosed	25 W	0.5 %	0.5 %	ITE (Commercial)	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	75 %	120 g	0.265 lb	4.1 A	CE cURus	3.3 V	85 VAC	305 VAC	1	Through Hole
aimtec AME25-15SMJZ	8-DIP Module	Enclosed	24 W	1 %	0.5 %	Medical	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	88 %	120 g	0.265 lb	1.6 A		15 V	85 VAC 100 V	264 VAC 370 VDC	1	Through Hole	4 Lead	Universal Input
aimtec AME25-5SVZ-ST		Enclosed	21 W			ITE (Commercial)	2.13 in	54 mm	3.78 "	1.26 in	32 mm	96.1 mm	79 %					5 V	85 VAC 100 V	264 VAC 370 VDC	1	Chassis Mount		Universal Input	4000 V	85 °C	-40 °C	4.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 100 ~ 370 VDC Input
