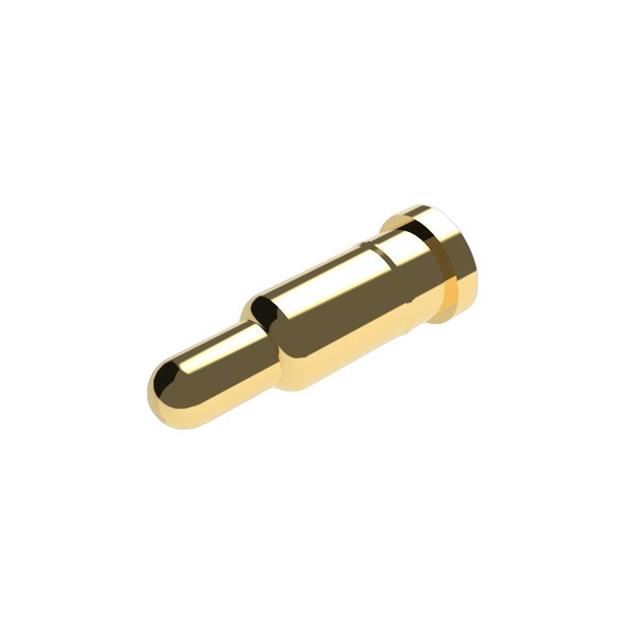

PH-MVF-3350

Active

Adam Tech

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Active

Adam Tech

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	PH-MVF-3350

Contact Finish	Gold
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Mating Cycles	1000000
Maximum Working Height [Max]	5 mm
Maximum Working Height [Max]	0.197 in
Minimum Working Height [Min]	3.6 mm
Minimum Working Height [Min]	0.142 in
Mounting Type	Surface Mount
Operating Force - Initial	70 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	1.8 mm
Pad Layout Dimension [diameter]	0.071 in
Plunger Size [diameter]	1 mm
Plunger Size [diameter]	0.039 in
Recommended Working Height [z]	0.157 in
Recommended Working Height [z]	4 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Recommended Working Height [z]	Recommended Working Height [z]	Mating Cycles	Contact Finish	Minimum Working Height [Min]	Minimum Working Height [Min]	Mounting Type	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Operating Force - Initial	Contact Type	Contact Material	Maximum Working Height [Max]	Maximum Working Height [Max]	Plunger Size [diameter]	Plunger Size [diameter]
Adam Tech PH-MVF-3345	-55 °C	125 °C	0.138 in	3.5 mm	1000000	Gold	3.1 mm	0.122 in	Surface Mount	1.8 mm	0.071 in	70 gf	Sleeve & Plunger (Pogo Pins)	Brass	0.177 in	4.5 mm	1 mm	0.039 in
Adam Tech PH-MVF-3350	-55 °C	125 °C	0.157 in	4 mm	1000000	Gold	3.6 mm	0.142 in	Surface Mount	1.8 mm	0.071 in	70 gf	Sleeve & Plunger (Pogo Pins)	Brass	0.197 in	5 mm	1 mm	0.039 in
