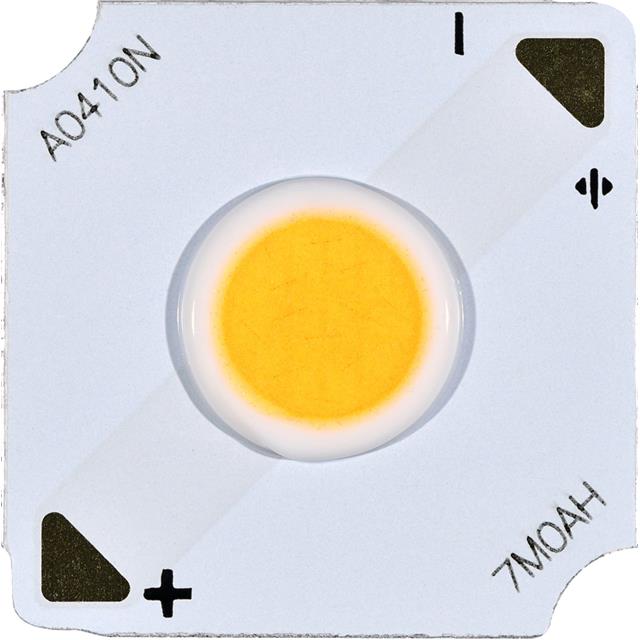

CHA0410-0000-000N0H0A27G

Active

Cree LED

X LAMP CHA LIGHT EMITTING DIODE WHITE

Search across all available documentation for this part.

Active

Cree LED

X LAMP CHA LIGHT EMITTING DIODE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	CHA0410-0000-000N0H0A27G

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	300 mA
Current - Test	175 mA
Height [z]	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.2 mm
Lumens/Watt @ Current - Test	119 lm/W
Luminous Flux @ Current/Temperature	748 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	114 °
Voltage - Forward (Vf) (Typ)	36 V

Part	Color	Light Emitting Surface (LES) [diameter]	Type	CCT (K)	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Temperature - Test	Current - Max [Max]	CRI (Color Rendering Index)	Height [z]	Lens Type	Configuration	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
Cree LED CHA0410-R160-00PN0U0A27G	Warm White	4.2 mm	Chip On Board (COB)	2700 K	525 mA	36 V	114 °	85 °C	900 mA	90	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PD0U0A40H	Neutral White	4.2 mm	Chip On Board (COB)	4000 K	175 mA	12 V	114 °	85 °C	300 mA	90	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PD0Z0A30H	Warm White	4.2 mm	Chip On Board (COB)		175 mA	12 V	114 °	85 °C	300 mA	95	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PN0U0A35G	Warm White	4.2 mm	Chip On Board (COB)	3500 K	525 mA	36 V	114 °	85 °C	900 mA	90	1.5 mm	Flat	Square
Cree LED CHA0410-0000-000N0H0A27G	Warm White	4.2 mm	Chip On Board (COB)	2700 K	175 mA	36 V	114 °	85 °C	300 mA	80	1.9 mm	Flat	Square	119 lm/W	748 lm
Cree LED CHA0410-R160-000N0U0A35G	Warm White	4.2 mm	Chip On Board (COB)	3500 K	175 mA	36 V	114 °	85 °C	300 mA	90	1.9 mm	Flat	Square	113 lm/W	711 lm
Cree LED CHA0410-R160-00PN0U0A40H	Neutral White	4.2 mm	Chip On Board (COB)	4000 K	525 mA	36 V	114 °	85 °C	900 mA	90	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PD0U0A35H	Warm White	4.2 mm	Chip On Board (COB)	3500 K	175 mA	12 V	114 °	85 °C	300 mA	90	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PD0Z0A40H	Neutral White	4.2 mm	Chip On Board (COB)	4000 K	175 mA	12 V	114 °	85 °C	300 mA	95	1.5 mm	Flat	Square
Cree LED CHA0410-R160-00PD0U0A30H	Warm White	4.2 mm	Chip On Board (COB)		175 mA	12 V	114 °	85 °C	300 mA	90	1.5 mm	Flat	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 2.41

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0410 White, Warm Square
