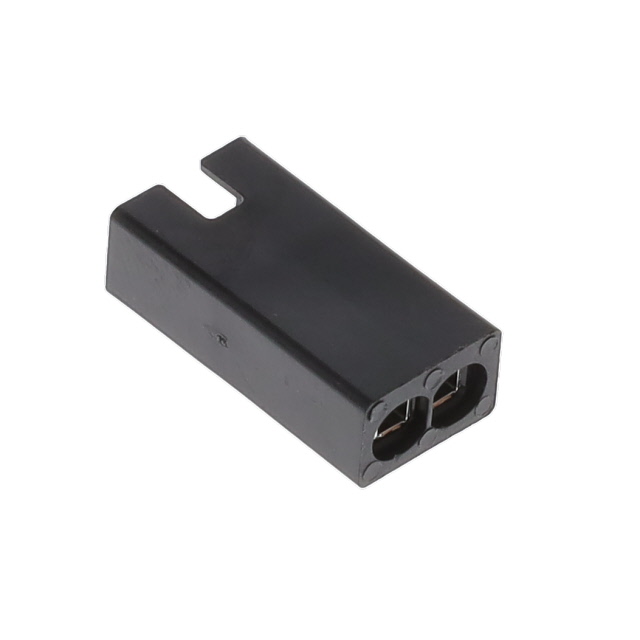

FLM-P23-00
ActiveAmphenol ICC (Commercial Products)
RECEPTACLE, FLM SERIES, ZHAGA BO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLM-P23-00
ActiveAmphenol ICC (Commercial Products)
RECEPTACLE, FLM SERIES, ZHAGA BO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLM-P23-00 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A, 7 A |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Mating Cycles | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.11 in |
| Pitch [x] | 2.8 mm |
| Style | Cable/Wire to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
| Wire Gauge | 20 AWG, 18 AWG, 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.78 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.21 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 1.09 | |||
| 2500 | $ 1.03 | |||
Description
General part information
FLM-P23 Series
SSL Connector 2 Position Receptacle, Poke-In Wire Cable/Wire to Cable/Wire 0.110" (2.80mm) Solder
