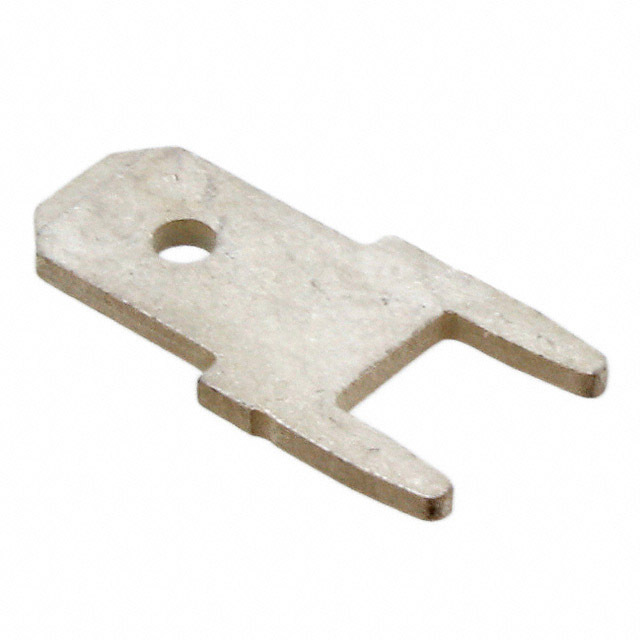

0197084011
ActiveMolex
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0197084011
ActiveMolex
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0197084011 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 12.95 mm |
| Length - Overall [x] | 0.51 in |
| Mounting Type | Through Hole |
| Tab Length | 0.255 in |
| Tab Length | 6.48 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| 3000 | $ 0.06 | |||
Description
General part information
019708 Series
0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
