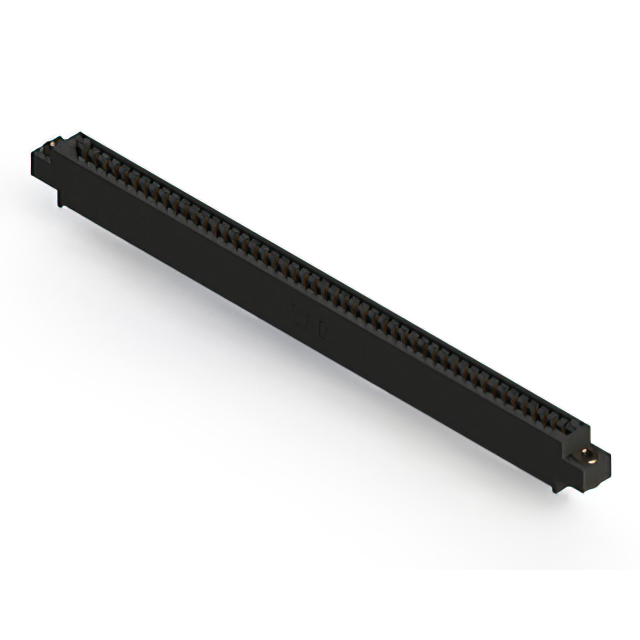

896-049-521-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 49POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-049-521-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 49 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
896-049 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Card Type | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Finish | Gender | Termination Rows | Contact Type | Color | Material - Insulation | Contact Material | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | ||
EDAC Inc. | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Wire Wrap | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Wire Wrap | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | ||
EDAC Inc. | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | ||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | ||||
EDAC Inc. | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 49 | Non Specified - Single Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | 49 | Gold | Female | 1 | Cantilever | Black | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-049 Series
49 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
