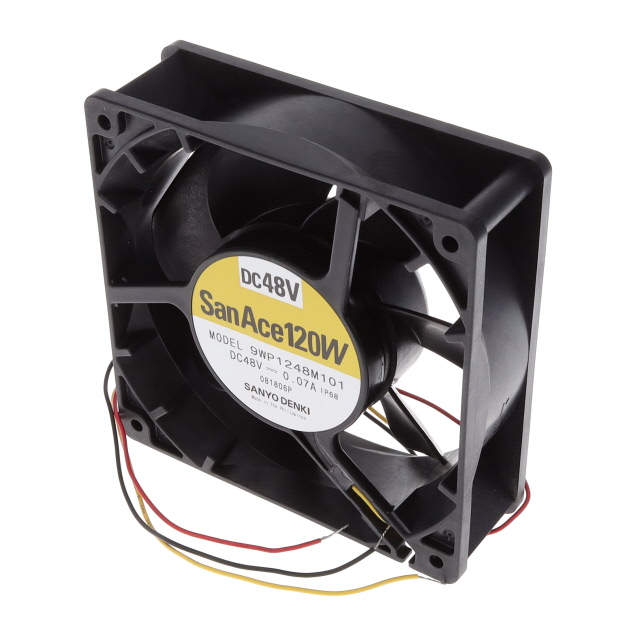

9WP1248M101

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

9WP1248M101

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WP1248M101

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	3.36 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Width [y]	38 mm

9WP1248 Series

Part	Termination	Width [y]	Features	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Ingress Protection	Power (Watts)	Weight [custom]	Weight [custom]	Material - Blade	Voltage - Rated [custom]	Voltage Range [Max]	Voltage Range [Min]	Noise	Static Pressure	Static Pressure	Fan Type	Bearing Type	RPM
Sanyo Denki America Inc. 9WP1248H1011	3 Wire Leads	38 mm	Speed Sensor (Tach)	120 mm	120 mm	99 CFM	2.77 mł/min	CSA TUV UL	110 mA	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	Plastic	IP68 - Dust Tight Waterproof	5.28 W	360.15 g	0.794 lb	Plastic	48 VDC	55.2 VDC	40.8 VDC	39 dB(A)	70.5 Pa	0.283 in H2O	Tubeaxial	Ball	2600 RPM
Sanyo Denki America Inc. 9WP1248M1011	3 Wire Leads	38 mm	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm										Plastic	IP68 - Dust Tight Waterproof	3.36 W			Plastic	48 VDC						Tubeaxial	Ball
Sanyo Denki America Inc. 9WP1248H101	3 Wire Leads	38 mm	Speed Sensor (Tach)	120 mm	120 mm			CSA TUV UL	110 mA	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	Plastic	IP68 - Dust Tight Waterproof	5.28 W	360.15 g	0.794 lb	Plastic	48 VDC	55.2 VDC	40.8 VDC	39 dB(A)	70.5 Pa	0.283 in H2O	Tubeaxial	Ball	2600 RPM
Sanyo Denki America Inc. 9WP1248H1D01	3 Wire Leads	38 mm	Locked Rotor Sensor	120 mm	120 mm			CSA TUV UL	110 mA	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	Plastic	IP68 - Dust Tight Waterproof	5.28 W	360.15 g	0.794 lb	Plastic	48 VDC	55.2 VDC	40.8 VDC	39 dB(A)	70.5 Pa	0.283 in H2O	Tubeaxial	Ball	2600 RPM
Sanyo Denki America Inc. 9WP1248M101	3 Wire Leads	38 mm	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm										Plastic	IP68 - Dust Tight Waterproof	3.36 W			Plastic	48 VDC						Tubeaxial	Ball
Sanyo Denki America Inc. 9WP1248M1021	2 Wire Leads	38 mm		120 mm	120 mm										Plastic	IP68 - Dust Tight Waterproof	3.36 W			Plastic	48 VDC						Tubeaxial	Ball
Sanyo Denki America Inc. 9WP1248H1D011	3 Wire Leads	38 mm	Locked Rotor Sensor	120 mm	120 mm			CSA TUV UL	110 mA	40000 Hrs	-20 °C	70 °C	-20 C	70 °C	Plastic	IP68 - Dust Tight Waterproof	5.28 W	360.15 g	0.794 lb	Plastic	48 VDC	55.2 VDC	40.8 VDC	39 dB(A)	70.5 Pa	0.283 in H2O	Tubeaxial	Ball	2600 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.25
