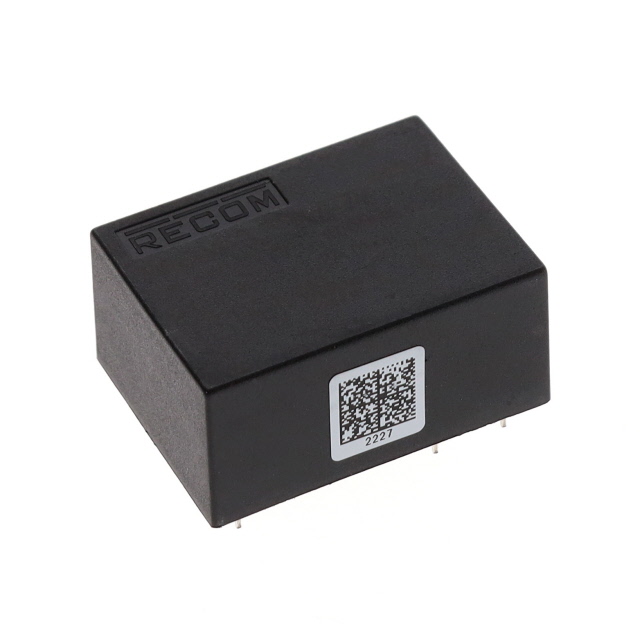

RAC04-3.3SK/277

Active

RECOM Power

AC/DC CONVERTER 3.3V 4W

Search across all available documentation for this part.

Active

RECOM Power

AC/DC CONVERTER 3.3V 4W

Technical Specifications

Parameters and characteristics for this part

Specification	RAC04-3.3SK/277

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, cURus, CB, FCC
Current - Output (Max) [Max]	1.2 A
Efficiency	73 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	4 W
Size / Dimension [x]	1.44 "
Size / Dimension [x]	36.7 mm
Size / Dimension [y]	1.07 in
Size / Dimension [y]	27.2 mm
Size / Dimension [z]	17.4 mm
Size / Dimension [z]	0.69 "
Type	Enclosed
Voltage - Input [Max]	390 VDC, 305 VAC
Voltage - Input [Min]	80 VAC, 110 VDC
Voltage - Output 1	3.3 V

AC/DC Power Modules 4W 85-305Vin 24Vout 170mA

Part	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Voltage - Output 1	Type	Line Regulation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Efficiency	Load Regulation	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]
RECOM Power RAC04-05SGB	800 mA	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	16-DIP Module 5 Leads	5 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	72 %	0.5 %	CE cURus	4 W
RECOM Power RAC04-3.3SGB	1.21 A	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	16-DIP Module 5 Leads	3.3 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	70 %	0.5 %	CE cURus	4 W
RECOM Power RAC04-24SGB	170 mA	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	16-DIP Module 5 Leads	24 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	80 %	0.5 %	CE cURus	4 W
RECOM Power RAC04-09SGB	440 mA	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	5-DIP Module	9 V	Enclosed	0.5 %	ITE (Commercial)	85 °C	-40 °C			77 %	0.5 %	CE cURus	4 W
RECOM Power RAC04-3.3SK/277	1.2 A	0.69 "		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC 110 VDC	305 VAC 390 VDC	6-DIP Module	3.3 V	Enclosed	0.5 %	Household Appliances ITE (Commercial) Medical	90 °C	-40 °C			73 %	1 %	CB CE cURus FCC	4 W	17.4 mm	27.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 4W 85-305Vin 24Vout 170mA
