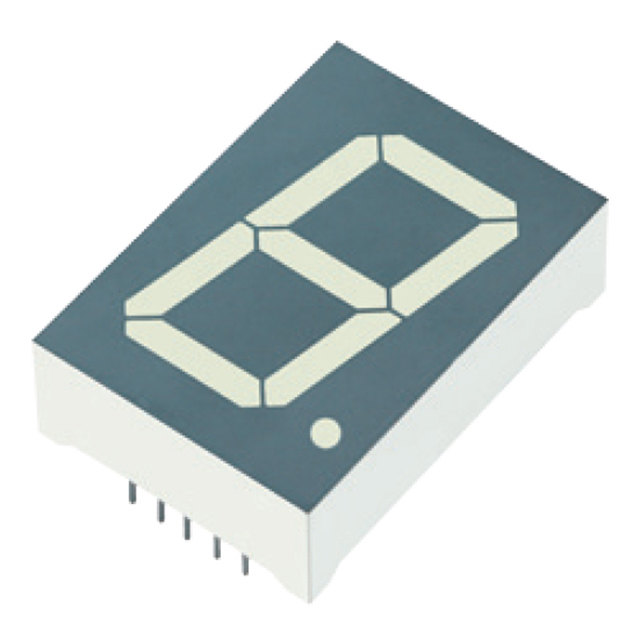

XDMR25A

Obsolete

SunLED

1.0" RED LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMR25A

Obsolete

SunLED

1.0" RED LED DISPLAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDMR25A

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	119.99 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	1.197 in
Package / Case [y]	30.4 mm
Power Dissipation (Max) [Max]	150 mW
Size / Dimension [x]	0.423 in
Size / Dimension [x]	10.75 mm
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Size / Dimension [z]	34 mm
Size / Dimension [z]	1.339 in
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength - Peak	660 nm

XDMR25 Series

Part	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Millicandela Rating	Common Pin	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Number of Characters [custom]	Package / Case [y]	Package / Case	Package / Case [x]	Color	Display Type	Digit/Alpha Size	Digit/Alpha Size
SunLED XDMR25A	660 nm	24 mm	34 mm	0.423 in	0.945 in	1.339 in	10.75 mm	119.99 mcd	Common Anode	10 mA	3.6 V	150 mW	1	30.4 mm	10-DIP	1.197 in	Red	7-Segment	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XDMR25 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.6V 10mA 1.339" H x 0.945" W x 0.423" D (34.00mm x 24.00mm x 10.75mm) 10-DIP (1.197", 30.40mm)
