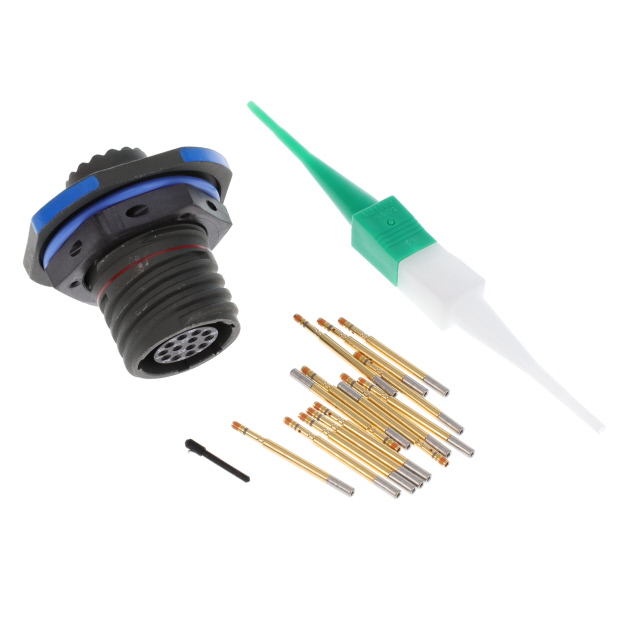

D38999/24JB35SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 13POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 13POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24JB35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	13
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	11
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

Part	Note	Grade	Shell Finish	Number of Positions	Mounting Feature	Shell Material	Ingress Protection	Housing Color	Contact Size	Type	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Qualification	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Shape	Shell Size, MIL	Applications	Primary Material	Contact Material	Color	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Amphenol Aerospace Operations D38999/24JB35BN	Contacts Not Included	Military	Cadmium	13	Bulkhead - Front Side Nut	Composite	Environment Resistant	Olive Drab	22D	For Female Sockets	Crimp	11	35	Receptacle Housing	MIL-DTL-38999 Series III	N	-65 ░C	347 °F	Shielded	Circular	B
Amphenol Aerospace Operations D38999/24JB35SN		Military	Olive Drab Cadmium	13	Bulkhead - Front Side Nut	Composite	Environment Resistant					11	35	Receptacle Female Sockets	MIL-DTL-38999 Series III	N	-65 ░C	347 °F	Shielded		B	Aerospace Aviation Marine Military	Composite	Copper Alloy	Olive Drab	Crimp	1.27 µm	50 µin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Circular Connector Receptacle, Female Sockets Crimp
