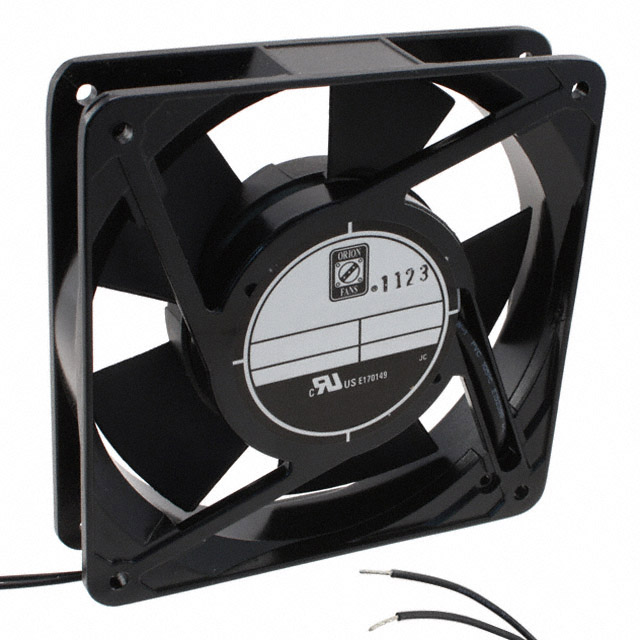

OA125AP-22-1WB

Active

Orion Fans

AC AXIAL FAN, 75 CFM, 14 W, 2900 RPM, 230 VAC, 42 DB, 120 MM X 25 MM, SQUARE, 2 LEAD WIRES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN Technical Data Sheet EN

OA125AP-22-1WB

Active

Orion Fans

AC AXIAL FAN, 75 CFM, 14 W, 2900 RPM, 230 VAC, 42 DB, 120 MM X 25 MM, SQUARE, 2 LEAD WIRES

Deep-Dive with AI

DocumentsMiscellaneous EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA125AP-22-1WB

Air Flow	2.1 m³/min
Air Flow	75 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	14 Watts
RPM	2900 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Voltage Range [Max]	260 VAC
Voltage Range [Min]	160 VAC
Weight	0.73 lb
Weight	331.12 g
Width [y]	25 mm

OA125AP Series

Part	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Width [y]	Material - Blade	Air Flow	Air Flow	Voltage - Rated	Bearing Type	Noise	Material - Frame	Static Pressure	Static Pressure	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Termination	Power (Watts)	Fan Type	RPM
Orion Fans OA125AP-11-3TB	80 VAC	130 VAC	120 mm	120 mm	60000 Hrs	25 mm	Polybutylene Terephthalate (PBT)	53 CFM	1.48 mł/min	115 VAC	Ball	33 dB(A)	Aluminum	0.11 in H2O	27.4 Pa	cURus TUV	80 C	80 °C	-20 °C	-20 C	0.73 lb	331.12 g	2 Terminals	14 Watts	Tubeaxial	2000 RPM
Orion Fans OA125AP-11-2WB	80 VAC	130 VAC	120 mm	120 mm	60000 Hrs	25 mm	Polybutylene Terephthalate (PBT)	60 CFM	1.68 mł/min	115 VAC	Ball	37 dB	Aluminum			cURus TUV	80 C	80 °C	-20 °C	-20 C	0.73 lb	331.12 g	2 Wire Leads	11 W	Tubeaxial	2500 RPM
Orion Fans OA125AP-11-1WB	80 VAC	130 VAC	120 mm	120 mm	60000 Hrs	25 mm	Polybutylene Terephthalate (PBT)	75 CFM	2.1 m³/min	115 VAC	Ball	42 dB	Aluminum	0.21 in H2O	52.3 Pa	cURus TUV	80 C	80 °C	-20 °C	-20 C	0.73 lb	331.12 g	2 Wire Leads	11 W	Tubeaxial	2900 RPM
Orion Fans OA125AP-22-1TB	160 VAC	260 VAC	120 mm	120 mm	60000 Hrs	25 mm	Polybutylene Terephthalate (PBT)	75 CFM	2.1 m³/min	230 VAC	Ball	42 dB	Aluminum	0.21 in H2O	52.3 Pa	cURus TUV	80 C	80 °C	-20 °C	-20 C	0.73 lb	331.12 g	2 Terminals	14 Watts	Tubeaxial	2900 RPM
Orion Fans OA125AP-22-1WB	160 VAC	260 VAC	120 mm	120 mm	60000 Hrs	25 mm	Polybutylene Terephthalate (PBT)	75 CFM	2.1 m³/min	230 VAC	Ball	42 dB	Aluminum	0.21 in H2O	52.3 Pa	cURus TUV	80 C	80 °C	-20 °C	-20 C	0.73 lb	331.12 g	2 Wire Leads	14 Watts	Tubeaxial	2900 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.44
Newark	Each	1	$ 23.40
		1000	$ 21.45

Description

General part information

OA125AP Series

Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 75.0 CFM (2.10m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Miscellaneous EN

Datasheet

Technical Data Sheet EN

Datasheet
