09332102648

Active

HARTING Technology Group

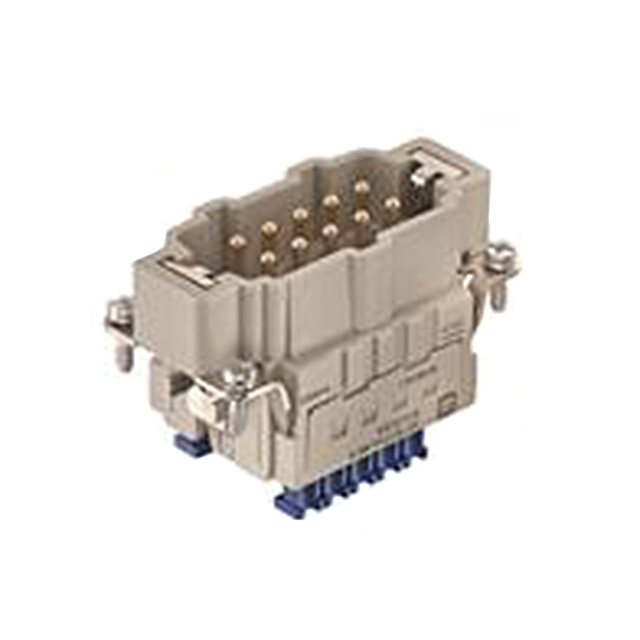

HEAVY DUTY CONNECTOR, HAN ES PRESS SERIES, INSERT, 10 CONTACTS, 10B, PLUG, CAGE CLAMP PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN ES PRESS SERIES, INSERT, 10 CONTACTS, 10B, PLUG, CAGE CLAMP PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09332102648

Color	Gray
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Tension Clamp
Voltage Rating	500 V

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Gender	Contact Type	Color	Voltage Rating	Termination Style	Connector Type	Material Flammability Rating	Size	Current Rating (Amps)	Contact Finish	Contact Material
HARTING Technology Group 09332102602	10+Ground	125 °C	-40 °C	Polycarbonate (PC)	Male	Han E® HMC	Gray	500 V	Crimp	Insert without Contacts	UL94 V-0	10B	16 A
HARTING Technology Group 09332102702	10+Ground	125 °C	-40 °C	Polycarbonate (PC)	Female	Han E® HMC	Gray	500 V	Crimp	Insert without Contacts	UL94 V-0	10B	16 A
HARTING Technology Group 09332102648	10+Ground	125 °C	-40 °C	Polycarbonate (PC)	Male		Gray	500 V	Tension Clamp		UL94 V-0	10B	16 A	Gold	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 10+Ground Position Tension Clamp
