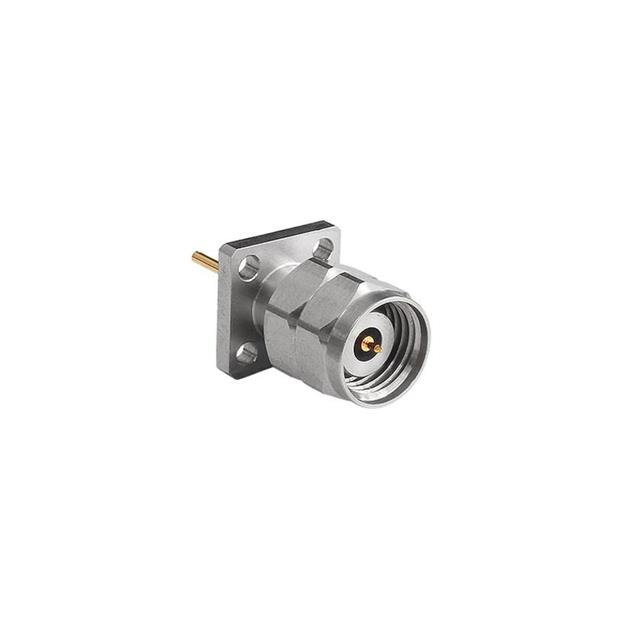

RF292A4PCCDK

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 2.92MM COAXIAL, STRAIGHT FLANGED PLUG, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

RF292A4PCCDK

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 2.92MM COAXIAL, STRAIGHT FLANGED PLUG, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF292A4PCCDK

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	2.92 mm
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

RF292 Series

...

Part	Center Contact Material	Housing Color	Number of Ports	Frequency - Max [Max]	Dielectric Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mating Cycles	Body Material	Impedance	Connector Type	Shield Termination	Contact Termination	Mounting Feature	Connector Style	Features
BULGIN LIMITED RF292A4JCCE	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292A4JCCES	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292A2JCCC	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)		85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Screw	Compression	Flange	2.92 mm
BULGIN LIMITED RF292A4PCCDK	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Male Pin Plug	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292DJA	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)		125 °C	-55 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Screw	Compression	Flange	2.92 mm
BULGIN LIMITED RF292APG	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Free Hanging (In-Line)	165 °C	-65 ░C	250 VDC	500	Stainless Steel	50 Ohms	Male Pin Plug	Solder	Solder		2.92 mm
BULGIN LIMITED RF292A2JDFDP	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292A2JDFES	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292A4JAAES	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm
BULGIN LIMITED RF292A4JAACCGH	Beryllium Copper	Silver	1	40 GHz	Polyetherimide (PEI)	Panel Mount Through Hole	85 °C	-40 °C	250 VDC	500	Stainless Steel	50 Ohms	Female Socket Jack	Solder	Solder	Flange	2.92 mm	Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.81

Description

General part information

RF292 Series

2.92mm Connector Plug, Male Pin 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
