SRR1005-220M

Active

Bourns Inc.

FIXED IND 22UH 1.4A 100 MOHM SMD

Search across all available documentation for this part.

Active

Bourns Inc.

FIXED IND 22UH 1.4A 100 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Material - Core	Q @ Freq	Tolerance	Frequency - Self Resonant	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Package / Case	Shielding	Type	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRR1005-180Y	Ferrite	2.52 MHz 35	15 %	19 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C	18 µH	12.7 mm	10 mm	0.394 in	0.5 in	1.6 A	90 mOhm	Nonstandard	Shielded	Drum Core Wirewound	2.1 A
Bourns Inc. SRR1005-561K	Ferrite	40 796 kHz	10 %	2.7 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C	560 µH	12.7 mm	10 mm	0.394 in	0.5 in	0.28 A	1.8 Ohm	Nonstandard	Shielded	Drum Core Wirewound	420 mA
Bourns Inc. SRR1005-471K	Ferrite	40 796 kHz	10 %	3 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C		12.7 mm	10 mm	0.394 in	0.5 in	300 mA	1.6 Ohm	Nonstandard	Shielded	Drum Core Wirewound	450 mA
Bourns Inc. SRR1005-150M	Ferrite	2.52 MHz 40	20 %	20 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C	15 µH	12.7 mm	10 mm	0.394 in	0.5 in	1.7 A	85 mOhm	Nonstandard	Shielded	Drum Core Wirewound	2.1 A
Bourns Inc. SRR1005-220M	Ferrite	2.52 MHz 42	20 %	18 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C	22 µH	12.7 mm	10 mm	0.394 in	0.5 in	1.4 A		Nonstandard	Shielded	Drum Core Wirewound	1.9 A	100 mOhm
Bourns Inc. SRR1005-102K	Ferrite	65 252 kHz	10 %	2 MHz	Surface Mount	5.2 mm	0.205 in	125 °C	-40 °C	1 mH	12.7 mm	10 mm	0.394 in	0.5 in	0.22 A	3.2 Ohm	Nonstandard	Shielded	Drum Core Wirewound	320 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

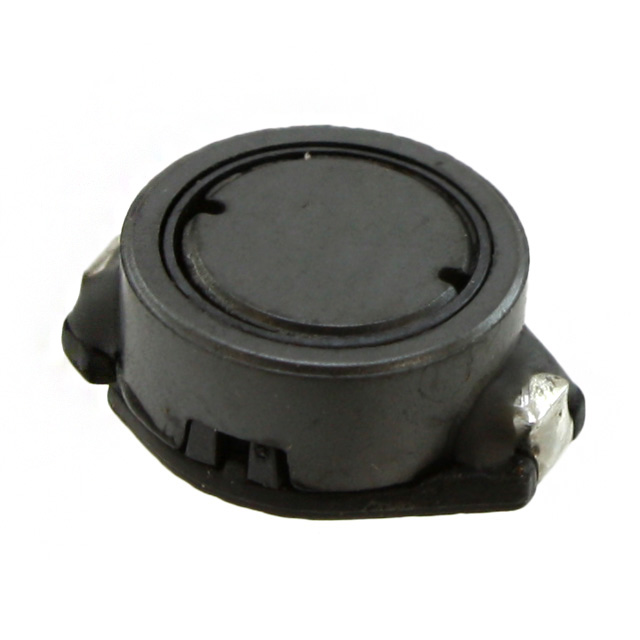

22 µH Shielded Drum Core, Wirewound Inductor 1.4 A 100mOhm Max Nonstandard
