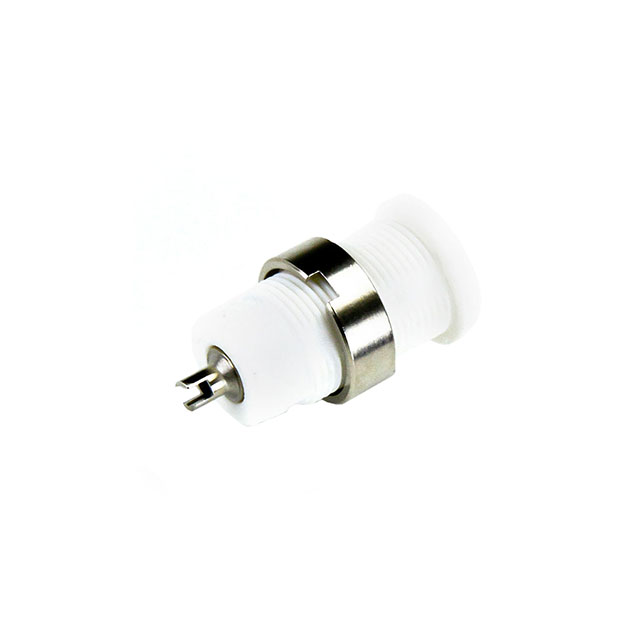

CT2242-9

Active

Cal Test Electronics

BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, WHITE

Search across all available documentation for this part.

Active

Cal Test Electronics

BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, WHITE

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Gender	Insulation	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Plug/Mating Plug Diameter	Type	Color
Cal Test Electronics CT2242-5	Nylon Polyamide (PA)	Female	Mating End Insulated	Nickel	Brass	-20 C	80 C	Standard Banana	Banana Jack	Green
Cal Test Electronics CT2242-9	Nylon Polyamide (PA)	Female	Mating End Insulated	Nickel	Brass	-20 C	80 C	Standard Banana	Banana Jack	White
Cal Test Electronics CT2242-7	Nylon Polyamide (PA)	Female	Mating End Insulated	Nickel	Brass	-20 C	80 C	Standard Banana	Banana Jack	Purple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.65
Newark	Each	1	$ 2.70

General part information

Banana Jack Connector Standard Banana Solder Cup White
