H9030-01

Active

Harwin Inc.

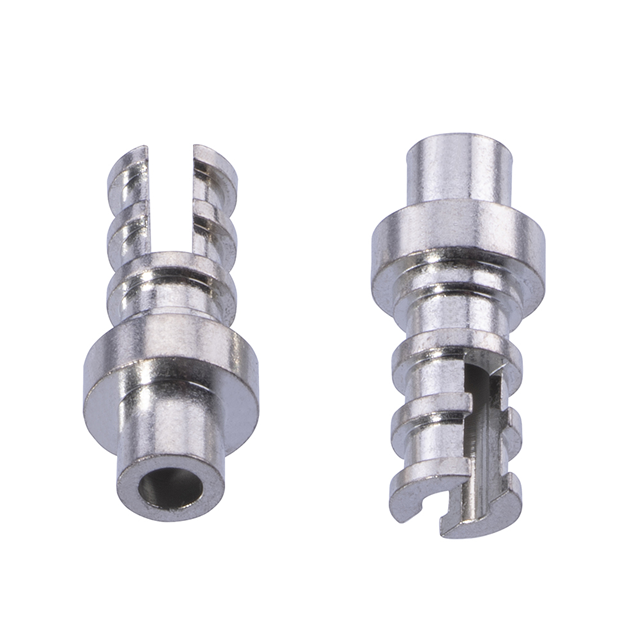

VERTICAL THROUGHBOARD SLOTTED TURRET LUG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED TURRET LUG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H9030-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Diameter - Turret Head [Max] [diameter]	3.68 mm
Diameter - Turret Head [Max] [diameter]	0.145 in
Diameter - Turret Head [Min] [diameter]	0.135 in
Diameter - Turret Head [Min] [diameter]	3.43 mm
Flange Diameter [diameter]	0.187 in
Flange Diameter [diameter]	4.75 mm
Insulation	Non-Insulated
Length - Above Board [Max] [x]	0.338 in
Length - Above Board [Max] [x]	8.58 mm
Length - Above Board [Min] [x]	0.318 in
Length - Above Board [Min] [x]	8.08 mm
Length - Below Flange [Max]	0.11 in
Length - Below Flange [Max]	2.79 mm
Length - Below Flange [Min]	0.1 in
Length - Below Flange [Min]	2.54 mm
Length - Overall [x]	0.418 in
Length - Overall [x]	10.62 mm
Mounting Hole Diameter [Max]	0.119 in
Mounting Hole Diameter [Max]	3.01 mm
Mounting Hole Diameter [Min]	0.115 in
Mounting Hole Diameter [Min]	2.93 mm
Mounting Type	Through Hole
Number of Turrets	Triple
Staking Side ID [Max]	1.91 mm
Staking Side ID [Max]	0.075 "
Staking Side ID [Min]	0.065 "
Staking Side ID [Min]	1.65 mm
Staking Side OD [Max]	2.98 mm
Staking Side OD [Max]	0.117 "
Staking Side OD [Min]	0.107 "
Staking Side OD [Min]	2.73 mm
Terminal Type	Single End, Hollow
Termination	Swage

Part	Number of Turrets	Termination	Mounting Type	Staking Side OD [Max]	Staking Side OD [Max]	Staking Side OD [Min]	Staking Side OD [Min]	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Below Flange [Max]	Length - Below Flange [Max]	Length - Below Flange [Min]	Length - Below Flange [Min]	Length - Above Board [Max] [x]	Length - Above Board [Min] [x]	Length - Above Board [Min] [x]	Length - Above Board [Max] [x]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Insulation	Staking Side ID [Max]	Staking Side ID [Min]	Staking Side ID [Max]	Staking Side ID [Min]	Contact Material	Contact Finish	Board Thickness	Board Thickness	Diameter - Turret Head [Max] [diameter]	Diameter - Turret Head [Max] [diameter]	Diameter - Turret Head [Min] [diameter]	Diameter - Turret Head [Min] [diameter]
Harwin Inc. H9030-01	Triple	Swage	Through Hole	2.98 mm	0.117 "	0.107 "	2.73 mm	Single End Hollow	0.187 in	4.75 mm	0.11 in	2.79 mm	0.1 in	2.54 mm	0.338 in	0.318 in	8.08 mm	8.58 mm	0.418 in	10.62 mm	0.119 in	0.115 in	2.93 mm	3.01 mm	Non-Insulated	1.91 mm	0.065 "	0.075 "	1.65 mm	Brass Alloy	Tin	1.6 mm	0.063 in	3.68 mm	0.145 in	0.135 in	3.43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.34
Newark	Each	1000	$ 0.42

General part information

Terminal Turret Connector Single End, Hollow 0.318" ~ 0.338" (8.08mm ~ 8.58mm) Tin
