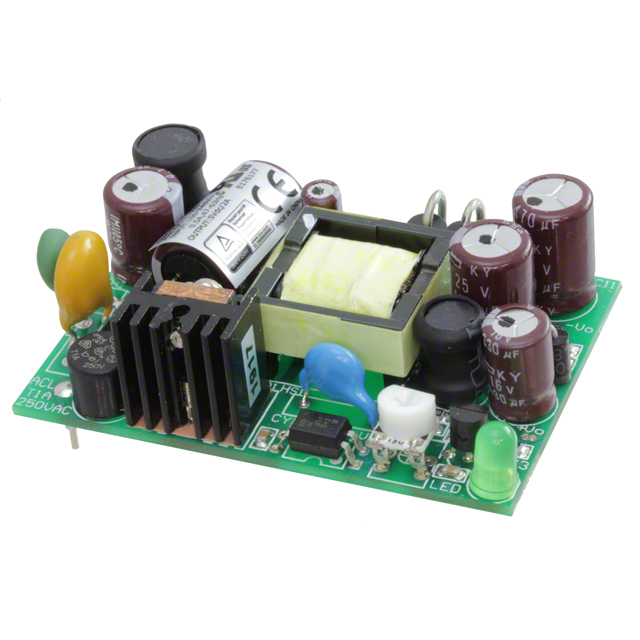

CFM1001S
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
CFM1001S
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 5V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM1001S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 73 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2.6 in |
| Size / Dimension [x] | 65 mm |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [z] | 23 mm |
| Size / Dimension [z] | 0.91 in |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CFM1001 Series
Open Frame AC DC Converters 1 Output 5V 2A 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
