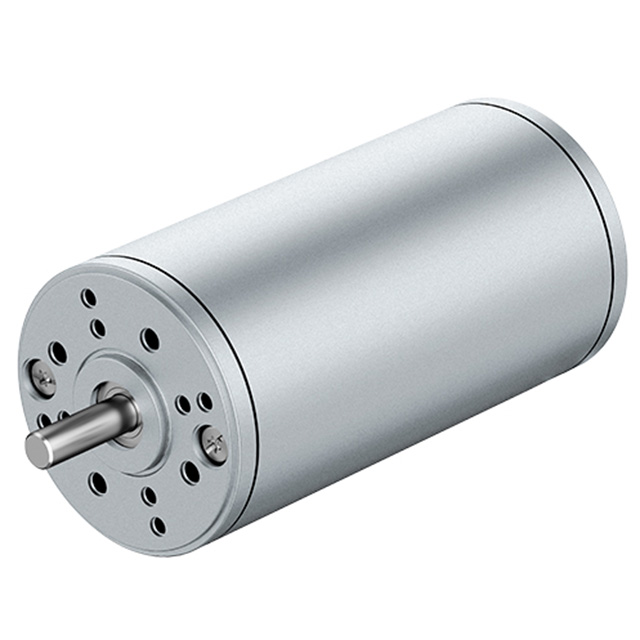

VM.BCI6355BK1
Activeebm-papst Inc.
STANDARD MOTOR 3300 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
VM.BCI6355BK1
Activeebm-papst Inc.
STANDARD MOTOR 3300 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VM.BCI6355BK1 |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 20.2 mm |
| Length - Shaft and Bearing [x] | 0.795 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 1.89 " |
| Mounting Hole Spacing | 48 mm |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| RPM | 3300 RPM |
| Size / Dimension [diameter] | 2.48 " |
| Size / Dimension [diameter] | 63 mm |
| Termination Style | Wire Leads |
| Torque - Rated (oz-in / mNm) | 270 mNm |
| Torque - Rated (oz-in / mNm) | 38.24 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 256.86 | |
| 5 | $ 236.05 | |||
| 10 | $ 227.62 | |||
| 25 | $ 226.75 | |||
Description
General part information
VM.BCI Series
Brushed DC Motor Standard 3300 RPM 24VDC
