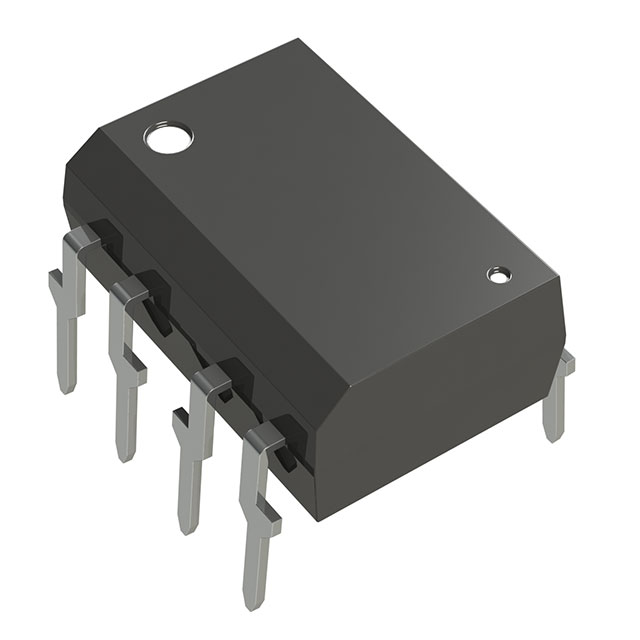

6N137F

Active

Toshiba Semiconductor and Storage

OPTOISO 2.5KV 1CH OPEN COLL 8DIP

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

OPTOISO 2.5KV 1CH OPEN COLL 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	6N137F

Common Mode Transient Immunity (Min)	500 V/µs
Common Mode Transient Immunity (Min) [Min]	200 V/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	Open Collector
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Rise / Fall Time (Typ) [custom]	30 ns
Rise / Fall Time (Typ) [custom]	30 ns
Supplier Device Package	8-DIP
Voltage - Forward (Vf) (Typ)	1.65 V
Voltage - Isolation	2500 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Input Type	Common Mode Transient Immunity (Min)	Common Mode Transient Immunity (Min) [Min]	Output Type	Package / Case	Package / Case	Package / Case	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Number of Channels	Data Rate	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Toshiba Semiconductor and Storage 6N137F	70 °C	0 °C	1.65 V	DC	500 V/µs	200 V/µs	Open Collector	0.3 in	8-DIP	7.62 mm	Through Hole	8-DIP	4.5 V	5.5 V	75 ns	75 ns	1	10 Mbps	2500 Vrms	20 mA	0	1	50 mA	30 ns	30 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Logic Output Optoisolator 10MBd Open Collector 2500Vrms 1 Channel 200V/µs, 500V/µs (Typ) CMTI 8-DIP
