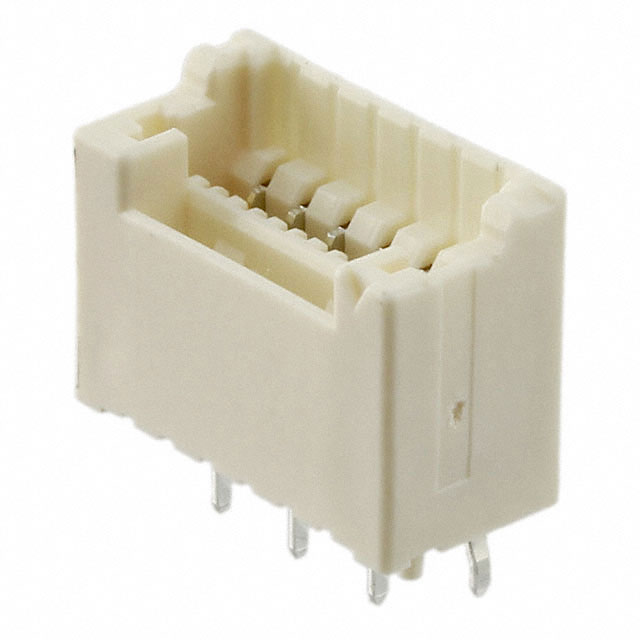

B06B-ZESK-1D

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B06B-ZESK-1D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Termination	Number of Rows	Number of Positions Loaded	Features	Contact Finish - Post	Contact Type	Style	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Insulation Color	Contact Material	Current Rating (Amps)	Connector Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Voltage Rating
JST Sales America Inc. B06B-ZESK-1D	Rectangular	-25 °C	85 °C	Locking Ramp	UL94 V-0	Kinked Pin Solder	1	All	Board Guide	Tin	Outer Shroud Contact	Board to Cable/Wire	Through Hole	0.335 "	8.51 mm	6	Natural	Copper Alloy	2 A	Header	Polyamide (PA66) Nylon 6/6 Glass Filled	0.134 in	3.4 mm	Shrouded - 4 Wall	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.059" (1.50mm)
