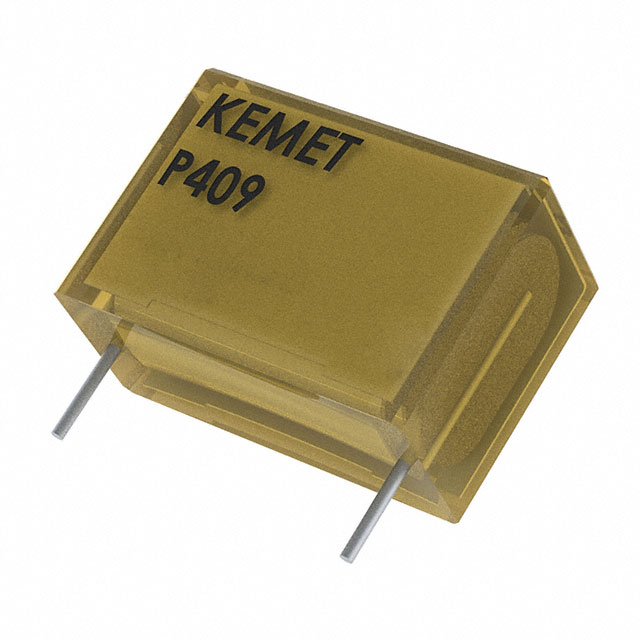

P409EL474M275AH680

Active

KEMET

CAP, 0.47ΜF, 20%, PAPER, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 0.47ΜF, 20%, PAPER, RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Filter Order	Type	Mounting Type	Values [custom]	Values [custom]	Height [z]	Height [z]	Number of Channels	Resistance - Channel (Ohms)	Voltage - Rated	Values
KEMET P409EL474M275AH101	1.201 in	0.602 in	30.5 mm	15.3 mm	Radial	General Purpose	85 °C	-40 °C	RC	1st	Low Pass	Through Hole	100 Ohms	0.47 µF	0.866 in	22 mm	1	100 Ohms	275 VAC
KEMET P409EL224M275AH471	1.201 in	0.602 in	30.5 mm	15.3 mm	Radial	General Purpose	85 °C	-40 °C	RC	1st	Low Pass	Through Hole			0.866 in	22 mm	1	470 Ohms	275 VAC	0.22 µF 470 Ohms
KEMET P409EL474M275AH680	1.201 in	0.602 in	30.5 mm	15.3 mm	Radial	General Purpose	85 °C	-40 °C	RC	1st	Low Pass	Through Hole			0.866 in	22 mm	1	68 Ohms	275 VAC	0.47 µF 68 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RC EMI Filter 1st Order Low Pass 1 Channel R = 68Ohms, C = 0.47µF Radial
