50.1114/EMV/R

Active

Jacob GmbH

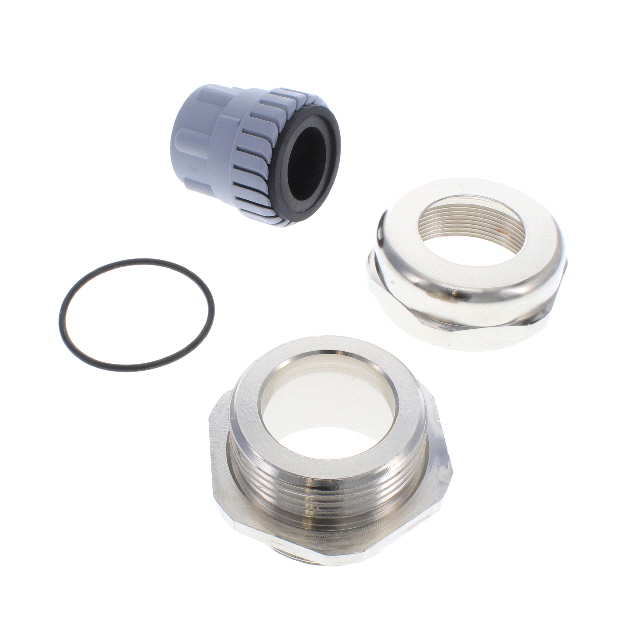

CABLE GLAND 16-27MM 1 1/4" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 16-27MM 1 1/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.1114/EMV/R

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	27 mm
Outside Cable Diameter (Max) [Max]	1.063 in
Outside Cable Diameter (Min) [Min]	0.63 in
Outside Cable Diameter (Min) [Min]	16 mm
Thread Length	14 mm
Thread Length	0.551 in
Thread Size
Type	Cable Gland

Part	Color	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Includes	Material
Jacob GmbH 50.1114/EMV/R	Silver	IP68 - Dust Tight Waterproof	27 mm	1.063 in		100 °C	-40 °C	Cable Gland	0.63 in	16 mm	14 mm	0.551 in	O-Ring Seal	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1 1/4" NPT Silver
