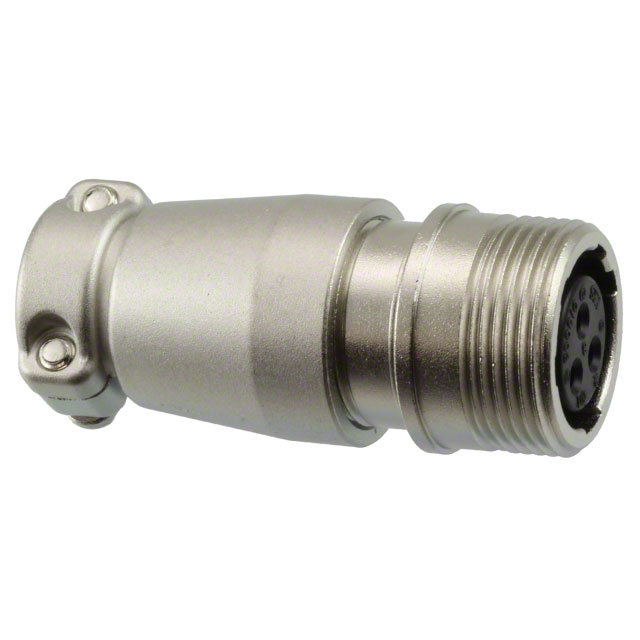

JR13JK-3S

Obsolete

Hirose Electric USA, Inc.

CONN JACK FMALE 3P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN JACK FMALE 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR13JK-3S

Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	0.335 in
Cable Opening [custom]	8.5 mm
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Cable Clamp, Backshell
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	13
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Insert Material	Connector Type	Backshell Material, Plating	Primary Material	Color	Shell Finish	Material Flammability Rating	Contact Material	Shell Material	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Shell Size - Insert	Shielding	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. JR13JK-3S	Phenol Formaldehyde (PF)	Female Sockets Jack	Aluminum Alloy Nickel	Metal	Silver	Nickel	UL94 V-0	Copper Alloy	Aluminum Alloy	Silver	0.335 in	8.5 mm	Backshell Cable Clamp	78.7 µin	2 µm	250 VAC 350 V	Free Hanging (In-Line)	-25 °C	85 °C	Keyed	10 A	13	Unshielded
Hirose Electric USA, Inc. JR13JK-3P	Phenol Formaldehyde (PF)	Jack Male Pins	Aluminum Alloy Nickel	Metal	Silver	Nickel	UL94 V-0	Copper Alloy	Aluminum Alloy	Silver	0.335 in	8.5 mm	Backshell Cable Clamp		118.1 µin	250 VAC 350 V	Free Hanging (In-Line)	-25 °C	85 °C	Keyed	10 A	13	Unshielded	3 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Jack, Female Sockets Solder Cup
