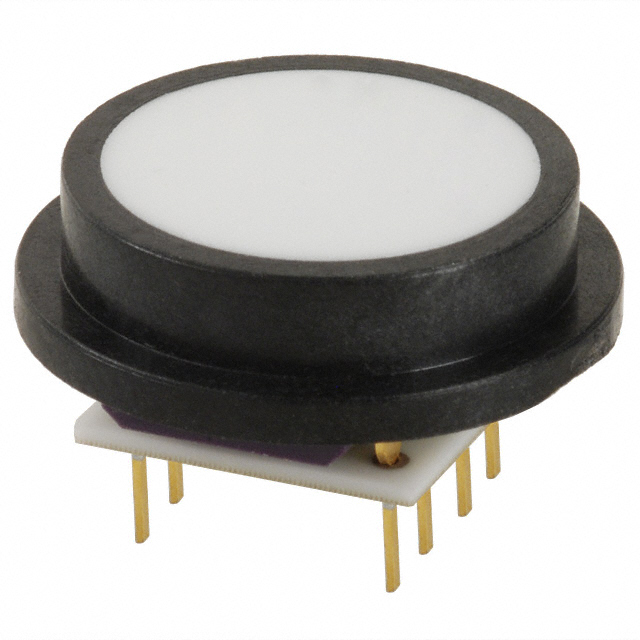

1865-07G-LDN

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG .04V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG .04V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Applications	Mounting Type	Pressure Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Output Type	Features	Package / Case	Accuracy	Voltage - Supply
Honeywell Sensing and Productivity Solutions 1865-07G-KDN	54 °C	-18.4 °F	0 mV	7.5 V	Board Mount	Through Hole	Vented Gauge	No Port	60 PSI	413.69 kPa	206.84 kPa	30 PSI	Wheatstone Bridge	Temperature Compensated	8-DIP Module	0.25 %	15 V
Honeywell Sensing and Productivity Solutions 1865-07G-LDN	54 °C	-18.4 °F	0 mV	40 mV	Board Mount	Through Hole	Vented Gauge	No Port	60 PSI	413.69 kPa	206.84 kPa	30 PSI	Wheatstone Bridge	Temperature Compensated	8-DIP Module	0.25 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 30PSI (206.84kPa) Vented Gauge 0 mV ~ 40 mV 8-DIP Module
