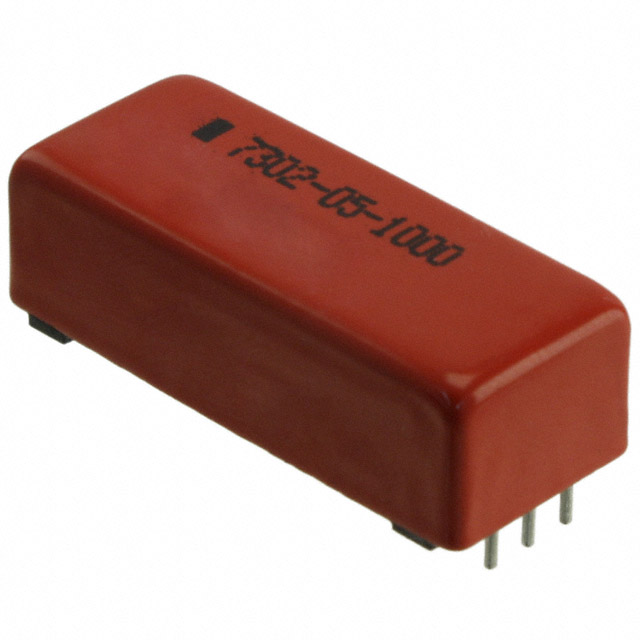

7302-05-1000

Coto Technology

RELAY REED DPST 500MA 5V

Search across all available documentation for this part.

Coto Technology

RELAY REED DPST 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Release Time	Switching Voltage	Contact Rating (Current)	Coil Voltage	Coil Type	Coil Resistance	Termination Style	Operate Time	Mounting Type	Must Operate Voltage	Must Release Voltage	Coil Current	Features
Coto Technology 7302-12-1000	85 °C	-20 C	DPST-NO (2 Form A)	0.1 ms	500 VAC 500 VDC	0.5 A	12 VDC	Non Latching	640 Ohms	PC Pin	1 ms	Through Hole	9 VDC	1 VDC	18.8 mA
Coto Technology 7302-05-1010	85 °C	-20 C	DPST-NO (2 Form A)	0.1 ms	500 VAC 500 VDC	0.5 A	5 VDC	Non Latching	100 Ohms	PC Pin	1 ms	Through Hole	3.75 VDC	0.4 VDC	50 mA	Electrostatic Shield
Coto Technology 7302-05-1000	85 °C	-20 C	DPST-NO (2 Form A)	0.1 ms	500 VAC 500 VDC	0.5 A	5 VDC	Non Latching	100 Ohms	PC Pin	1 ms	Through Hole	3.75 VDC	0.4 VDC	50 mA
Coto Technology 7302-24-1010	85 °C	-20 C	DPST-NO (2 Form A)	0.1 ms	500 VAC 500 VDC	0.5 A	24 VDC	Non Latching	2.45 kOhms	PC Pin	1 ms	Through Hole	18 VDC	2 VDC	9.8 mA	Electrostatic Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED DPST 500MA 5V
