RJE01J6002

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 6P6C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJE01J6002

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 6P6C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJE01J6002

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

RJE01 Series

Part	Number of Ports	Tab Direction	Number of Positions/Contacts	Number of Rows	Orientation	Shielding	Termination	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Housing Material	Contact Finish	Mounting Type	Connector Type	Number of Positions/Contacts
Amphenol ICC (Commercial Products) RJE01G6002	2	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Unshielded	Solder	85 °C	-55 °C	Does Not Contain LED	15 µin	0.38 µm	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0166202	2	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Shielded EMI Finger	Solder	85 °C	-55 °C	Does Not Contain LED	50 µin	1.27 µm	Phosphor Bronze	Polyamide (PA) Nylon	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0166201	1	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Shielded EMI Finger	Solder	85 °C	-55 °C	Does Not Contain LED	50 µin	1.27 µm	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0112501	1	Up		1	90 °	Shielded EMI Finger	Solder	85 °C	-55 °C	Does Not Contain LED	6 Áin	0.152 Ám	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack	2 6
Amphenol ICC (Commercial Products) RJE0114501	1	Up	6p4c	1	90 °	Shielded	Solder	85 °C	-55 °C	Does Not Contain LED	6 Áin	0.152 Ám	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0166001	1	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Unshielded	Solder	85 °C	-55 °C	Does Not Contain LED	50 µin	1.27 µm	Phosphor Bronze	Polyamide (PA) Nylon	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0116002	2	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Unshielded	Solder	85 °C	-55 °C	Does Not Contain LED	6 Áin	0.152 Ám	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE0164002	2	Up	6p4c	1	90 °	Unshielded	Solder	70 °C	0 °C	Does Not Contain LED	50 µin	1.27 µm	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE01J6002	2	Up	6p6c (RJ11 RJ12 RJ14 RJ25)	1	90 °	Unshielded	Solder	85 °C	-55 °C	Does Not Contain LED	30 Áin	0.76 Ám	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack
Amphenol ICC (Commercial Products) RJE01J2001	1	Up		1	90 °	Unshielded	Solder	85 °C	-55 °C	Does Not Contain LED	30 Áin	0.76 Ám	Phosphor Bronze	Thermoplastic	Gold	Through Hole	Jack	2 6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.05
		24	$ 0.92
		48	$ 0.86
		120	$ 0.82
		264	$ 0.74
		504	$ 0.69

Description

General part information

RJE01 Series

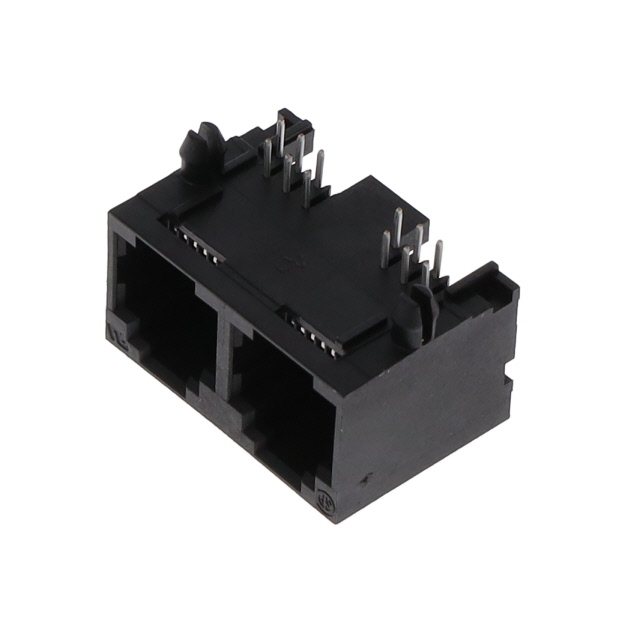

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
