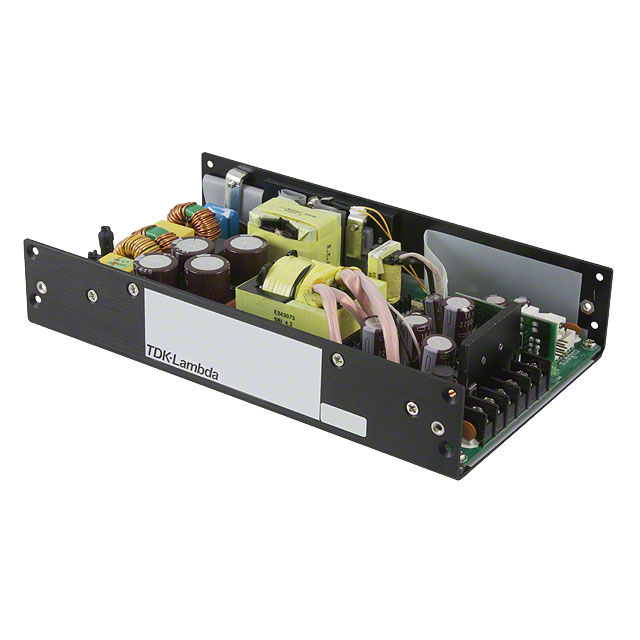

CSS500-12/I

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 500W @ 30CFM, 360 W, 90V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Medical Power Brochure +3

CSS500-12/I

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 500W @ 30CFM, 360 W, 90V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Medical Power Brochure +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSS500-12/I

Applications	Medical
Approval Agency	CE
Current - Output 1	30 A
Efficiency	87 %
Features	Universal Input, Load Sharing, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	360 W
Power (Watts)	500 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	4.7 in
Size / Dimension [y]	119.4 mm
Size / Dimension [z]	41.4 mm
Size / Dimension [z]	1.63 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

CSS500 Series

Part	Approval Agency	Operating Temperature [Max]	Power (Watts)	Power (Watts)	Efficiency	Number of Outputs	Features	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Applications
TDK-LAMBDA CSS500-12/S	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	12 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	30 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-30/SI	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	30 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	12 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-24/S	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	24 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	15 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-24/I	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	24 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	15 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-36/S	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	36 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	10 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-30/TI	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	30 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	12 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-36/SI	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	36 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	10 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-48/T	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	48 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm		Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-36/I	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	36 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	10 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical
TDK-LAMBDA CSS500-12/I	CE	70 °C	360 W	500 W	87 %	1	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	Open Frame	12 V	41.4 mm	228.6 mm	9 in	4.7 in	1.63 in	119.4 mm	30 A	Chassis Mount	90 VAC	264 VAC	4000 V	Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 281.95
		10	$ 234.96
		25	$ 218.18
Newark	Each	1	$ 281.95
		10	$ 234.96
		25	$ 215.18

Description

General part information

CSS500 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
