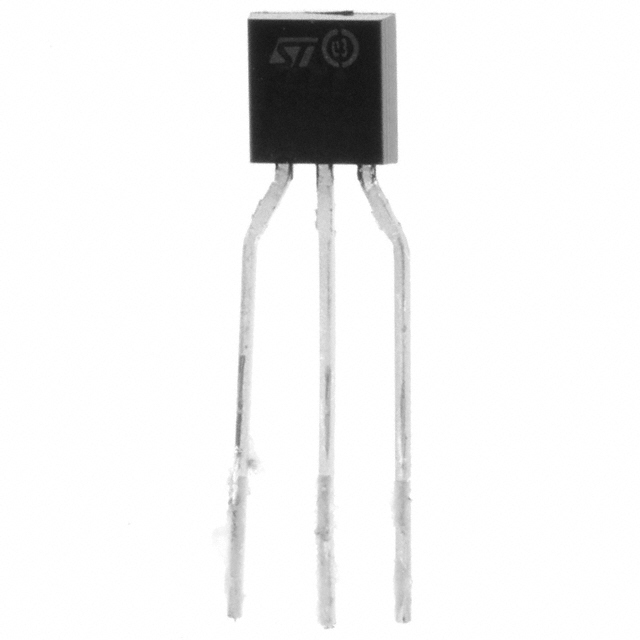

2STL2580

Obsolete

STMicroelectronics

TRANS NPN 400V 1A TO92MOD

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 400V 1A TO92MOD

Technical Specifications

Parameters and characteristics for this part

Specification	2STL2580

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	60
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-92-3 Long Body, TO-226-3
Power - Max [Max]	1.5 W
Supplier Device Package	TO-92MOD
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	400 V

Part	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Frequency - Transition
STMicroelectronics 2STL2580-AP	Through Hole	60	1 V	NPN	TO-92MOD	400 V	TO-226-3 TO-92-3 Long Body	1.5 W	10 µA	1 A	150 °C
STMicroelectronics 2STL1360	Through Hole	160	500 mV	NPN	TO-92L	60 V	TO-226-3 TO-92-3 Long Body	1.2 W	100 nA	3 A	150 °C	130 MHz
STMicroelectronics 2STL2580	Through Hole	60	1 V	NPN	TO-92MOD	400 V	TO-226-3 TO-92-3 Long Body	1.5 W	10 µA	1 A	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 400 V 1 A 1.5 W Through Hole TO-92MOD
